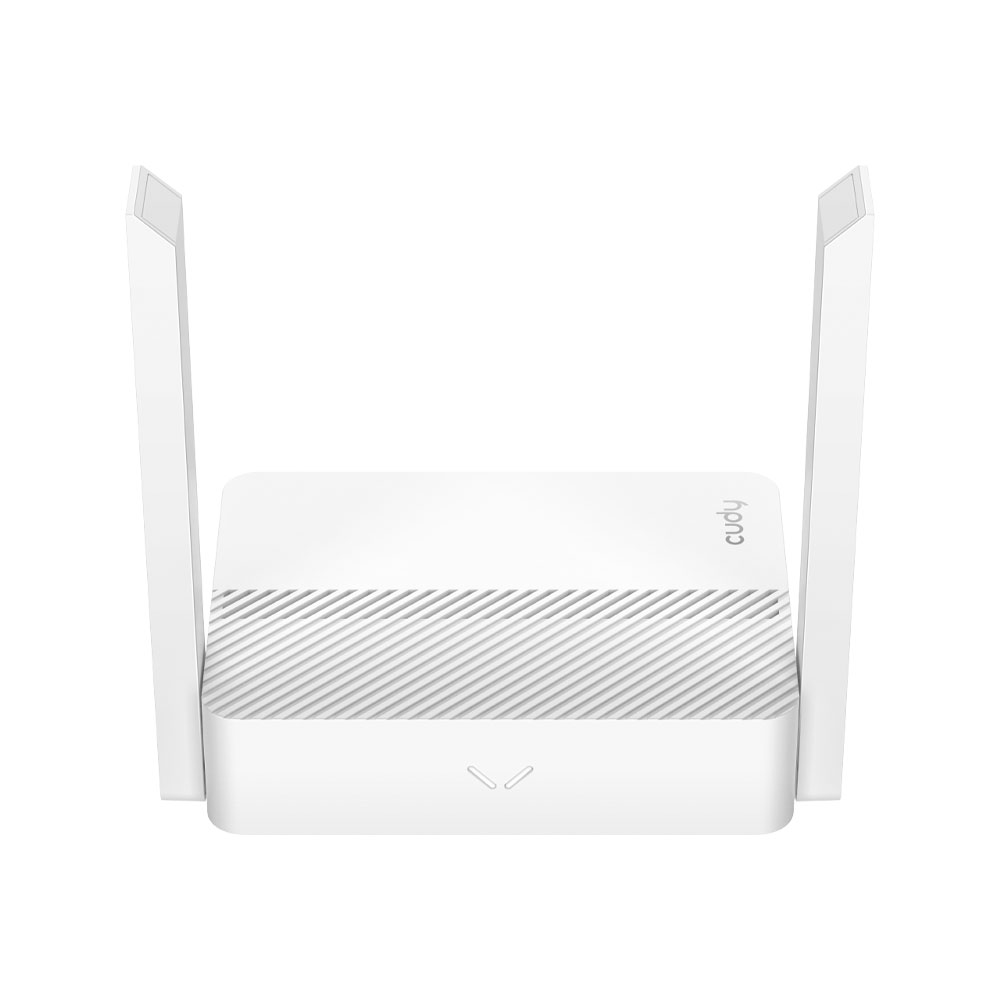

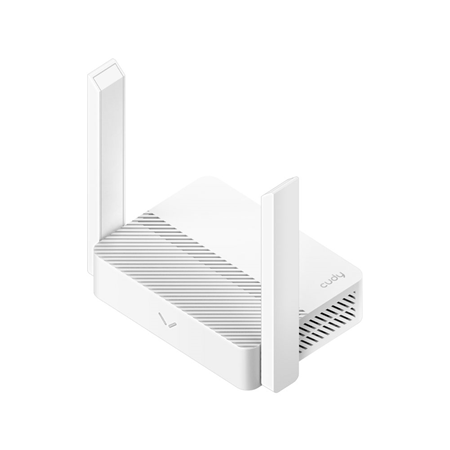

Desktop 4G LTE Wi-Fi 4 Cudy router with VPN, nano SIM and WAN/LAN port

Technical features

• 4G LTE Wi-Fi Cudy 4G LTE desktop router with 1 nano SIM slot and 2 Fast Ethernet ports
• 4G Cat 4 with maximum download speed of 150 Mbps and upload speed of 50 Mbps in LTE-FDD
• Wi-Fi 4 on 2.4 GHz with speeds up to 300 Mbps and 2T2R 2×2 MIMO architecture
• MT7628 single-core CPU at 580 MHz
• 8 MB flash memory and 64 MB DDR2 RAM
• 2 fixed cellular antennas and 2 internal Wi-Fi antennas
• Maximum 2.4 GHz antenna gain of 2.83 dBi
• Maximum Wi-Fi range up to 100 m in open space
• EU bands LTE-FDD B1/3/5/7/8/20/28, LTE-TDD B38/40/41 and WCDMA B1/5/8

Functionalities

• Operating modes Cellular Router, Wi-Fi Router and WISP
• Failover between WAN, WISP and cellular network
• Band selection, cellular mode selection, data roaming and APN profiles
• QoS with per-user rate limiting
• 2.4 GHz guest network
• Parental control, domain filtering and IP filtering
• Wi-Fi time scheduling, MAC filtering and IP/MAC binding
• Local update, OTA from app and online update
• Diagnostics with ping, traceroute, NSLookup and system log

Communication interface

• WPS button
• Reset button
• 1 nano SIM slot

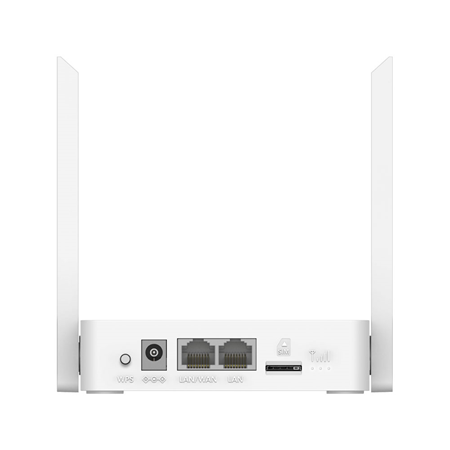

Network

• 2 RJ45 10/100 Mbps ports
• 1 RJ45 port configurable as WAN/LAN and 1 LAN port
• IPv4/IPv6 support
• IPv6 Relay, SLAAC/DHCPv6, Fixed IP, Passthrough, 464XLAT, MAP-E and DS-Lite protocols
• IPTV/VLAN with Bridge and VLAN Tag
• Port Forwarding, Port Triggering, UPnP and DMZ
• SPI firewall, DoS protection and ping blocking
• Passthrough IPSec, L2TP, PPTP, FTP, TFTP, H323, SIP and RTSP
• VPN WireGuard, OpenVPN, PPTP and L2TP server
• VPN WireGuard, OpenVPN, PPTP and L2TP client
• Local control via web and app
• Remote control via app and HTTP configuration page
• Management and control in the cloud via Cudy app

Power

• USB-C power supply
• Maximum power consumption of 8 W
• Standby power consumption of 3 W

Environmental

• Operating temperature 0 °C to 40 °C
• Storage temperature -40 °C to 70 °C (-40 °F to 158 °F)
• Operating humidity 10 % to 90 % non-condensing
• Storage humidity 5 % to 90 % non-condensing
• 4 kV contact ESD and 8 kV air ESD protection

Physical characteristics

• Tabletop installation
• Dimensions 118×80×27.5 mm
• Product weight 172.2 g

Contents

• CUDY-89 4G LTE Wi-Fi Router (LT300)
• Ethernet cable
• USB-C cable
• Installation guide

Certifications and regulations

• FCC
• CE
• RoHS
