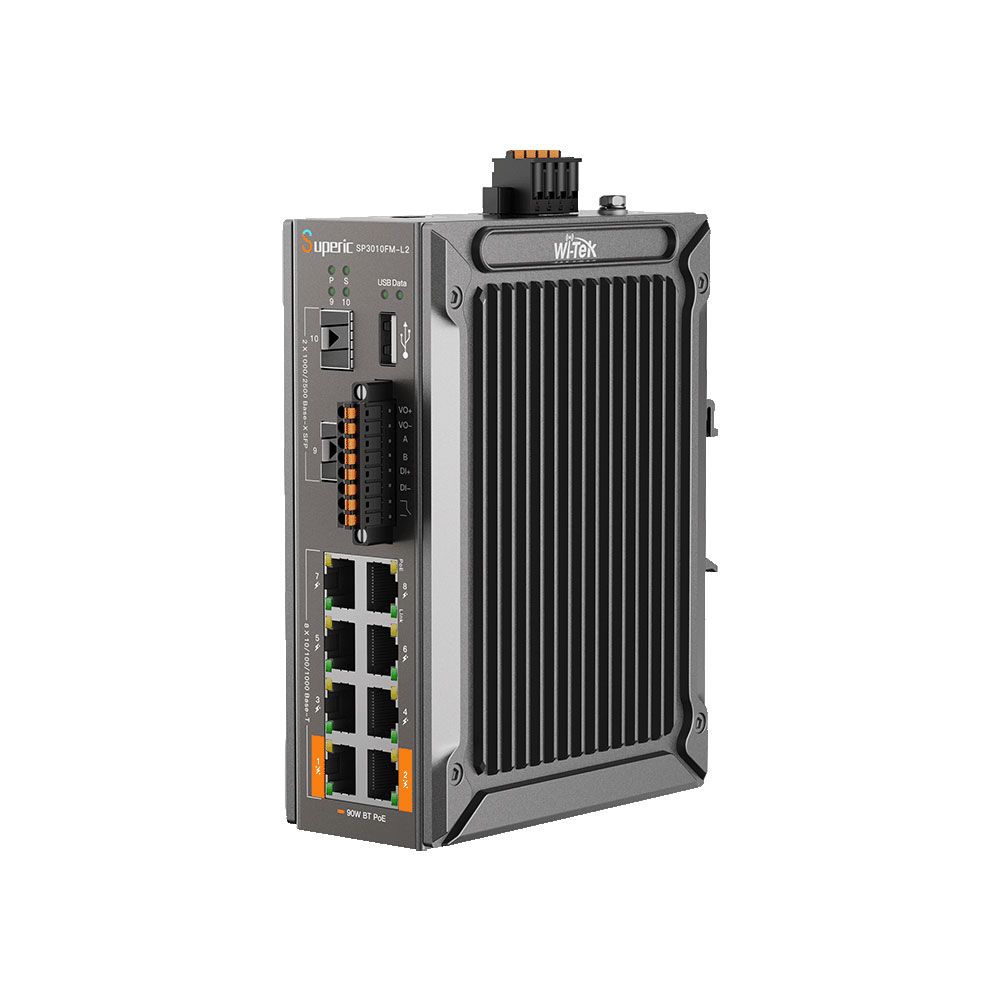

Wi-Tek Superic series industrial PoE L2+ switch

WITEK-0178

SP3010FM-L2 V3

Hoofd functies

  • Wi-Tek Superic industrial PoE L2+ switch
  • 8 Gigabit ports (2 PoE++ 90W and 6 PoE+)
  • 2 SFP 2.5G ports
  • PoE 240W PoE delivery
  • ERPS, STP/RSTP/MSTP, QinQ and VLAN
  • Redundant DC 44-57V input
  • Fanless, -40~75 °C, 6kV, DIN-rail/Wall

Specificaties

Technical Features

  • Industrial PoE L2+ Switch Wi-Tek Superic SP3010FM-L2 V3 series
  • 8 10/100/1000Mbps RJ45 ports (2 PoE++ 802.3bt up to 90W; 6 PoE+ 802.3at)
  • 2 1G/2.5G SFP ports for uplink
  • 26Gbps and 19.3Mpps switching capacity
  • 16K MAC table and 12Mbit buffer; 10KB jumbo frames
  • Fanless design

Features

  • Managed L2+: 802.1Q VLAN, QinQ, VLAN classification (MAC/IP/Protocol), GVRP
  • Static aggregation and LACP (up to 64 groups)
  • STP/RSTP/MSTP, Loop Detection and BPDU Guard
  • QoS with 8 queues, 802.1p CoS/DSCP, SP/WRR
  • IGMP Snooping, MLD Snooping
  • DHCP Snooping/Client/Option-82
  • PoE Management with 802.3af/at/bt ports
  • Serial Server, Digital IN input and relay output; temperature/humidity detection

Smart Features

  • G.8032 ERPS protocol for ring with fast recovery
  • Relay alarms (dying gasp) and environmental monitoring

Storage

  • Export/Import of configuration; update via web/TFTP

Alarms

  • Alarm relay output

Communication interface

  • Console port
  • RS485
  • Digital input
  • Reset button

Network

  • Network interface: 8 x RJ45 Gigabit + 2 x SFP 1G/2.5G
  • Security: ACL (IP/MAC/L2/L3), 802.1X (port/MAC), RADIUS/TACACACS+, IP Source Guard, port isolation, ARP inspection
  • IPv6: IPv4/IPv6 dual stack, Ping/Tracert/Telnet/SSH/HTTP/HTTPS/SNMP/TFTP over IPv6
  • Management: Web GUI, CLI (console/Telnet/SSH), SNMP v1/v2c/v3, RMON (1/2/3/9), Syslog, NTP/SNTP, DDM transceivers

Power supply

  • Redundant DC inputs: 44~57V DC (with PoE active); 12~58V DC (non-PoE mode).
  • PoE budget: 240W maximum
  • Consumption: 10W idle / up to 250W at full PoE load

Environmental

  • Operating temperature: -40°C ~ 75°C; humidity 10%~90% (non-condensing)
  • Protections: overvoltage 6kV on Ethernet and power; ESD 15kV air / 8kV contact.
  • Certifications: CE, FCC, RoHS, UKCA, RCM

Physical characteristics

  • DIN-rail, wall or desktop installation
  • Dimensions: 56 × 115 × 158 mm
  • Net weight: 1.15 kg
  • Gross weight: 1.52 kg

Contents

  • Industrial PoE L2+ Switch WITEK-0178 (SP3010FM-L2 V3)
  • Phoenix terminal (2 pcs.)
  • Wall mounting ears (1 pc.)
  • Temperature/humidity sensor (1 pc.)
  • Quick installation guide (1 pc.)

Certifications

  • CE, FCC, RoHS, UKCA, RCM
REFERENTIE / MODEL WITEK-0178 / SP3010FM-L2 V3
Speciale bescherming No
Technologie FIBER || IP || POE || RS-485 || Temperature Sensor
PoE 2 PoE++ || 6 PoE+ || 8 PoE || 90W PoE || PoE+ || PoE++
Cctv modus No
Vezel type SFP poort
Vezel poorten 2 (2.5 Gb)
RJ45 Poorten 8 (Gigabit)
Installatieomgeving Industrial
Alarm kanalen 1 ingang / 1 uitgang
Managed Browser || CLI || L2+ || SNMP
Ring ERPS || RSTP || STP
POE spanning 201-250W
Installatie Desktop || DIN || Muur
Fan No
Uplink Ports 2 SFP 2.5 Gb
Switch Type Industrial
Power Input 2 Power Input
