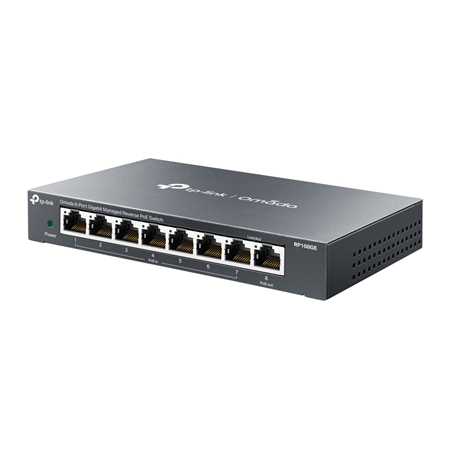

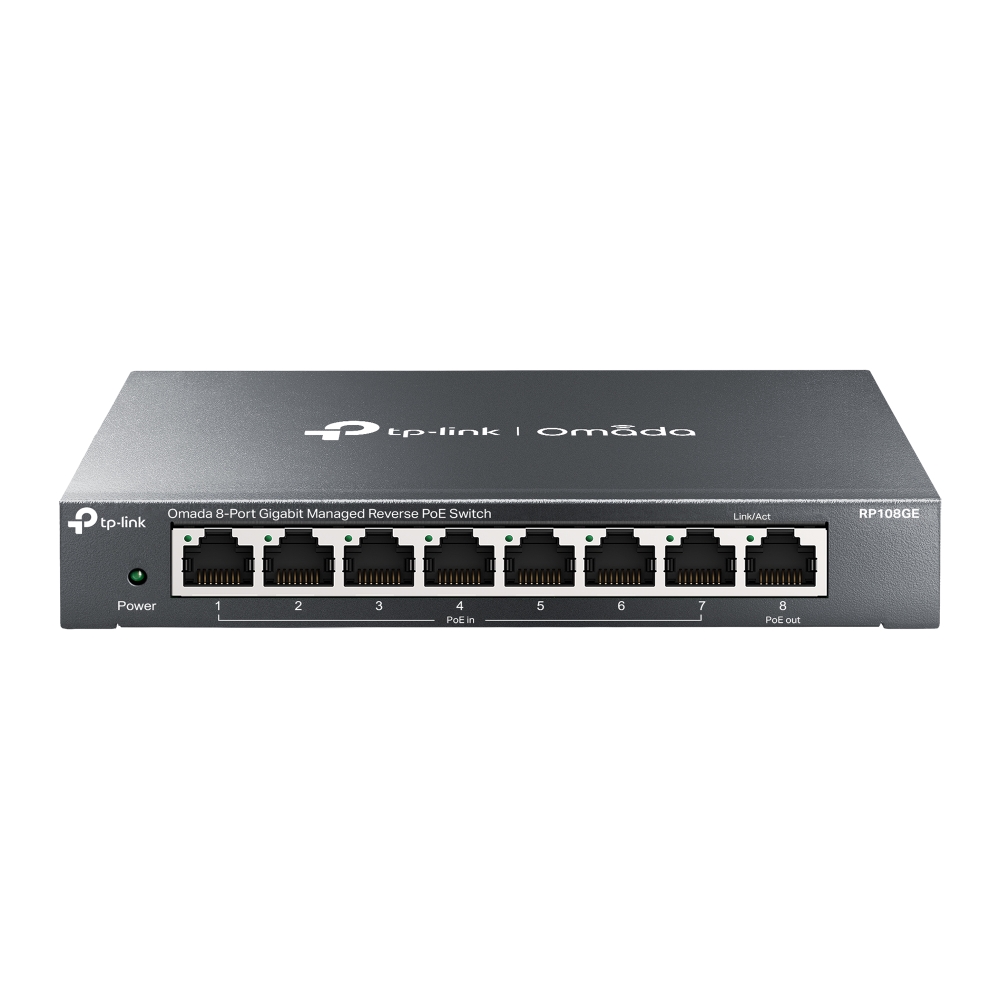

TP-Link Omada 8-channel gigabit gigabit PoE reverse switch

Technical Features

• Reverse PoE gigabit gigabit switch TP-Link Omada
• 7 passive 10/100/1000 Mbps incoming RJ45 PoE ports
• 1 port RJ45 passive PoE 10/100/1000 Mbps outgoing port

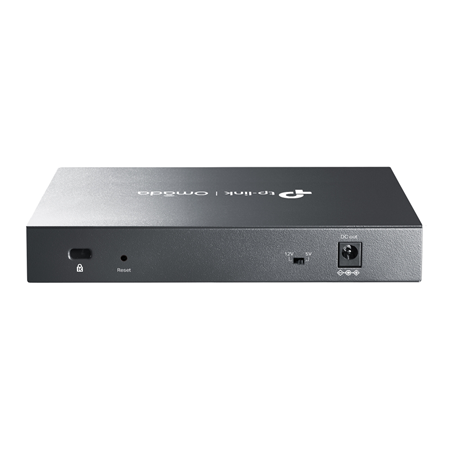

• 1 DC output port with selectable voltage 5V or 12V
• 16 Gbps switching capacity

Features

• Reverse PoE with power from input PoE ports
• Passive PoE power output depending on input voltage
• DC output for powering external devices
• Power-saving technology for reduced power consumption

Intelligent features

• IGMP Snooping
• Loop prevention
• Port Mirroring
• Static link aggregation

Communication interface

• 8 x RJ45 10/100/1000 Mbps ports
• 1 DC out port

Network

• IEEE 802.3
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.1p
• IEEE 802.1q

Power

• Passive PoE input 24 V or 48 V on RJ45 ports
• Passive PoE output up to 10 W at 24 V
• Up to 26 W passive PoE output at 48 V
• Maximum power consumption 32.74 W

Environmental

• Ethernet surge protection of ±2 kV
• ESD protection air ±8 kV and contact ±4 kV
• Operating temperature 0 °C to 40 °C
• Operating humidity 10 % to 90 % non-condensing

Physical characteristics

• Metal housing
• Tabletop or wall mounting
• Dimensions: 158 × 99.1 × 25.2 mm (158 × 99.1 × 25.2 mm)
• Fanless design

Contents

• TPLINK-244 gigabit PoE reverse switch (RP108GE)

Certifications

• CE
• FCC
• RoHS
