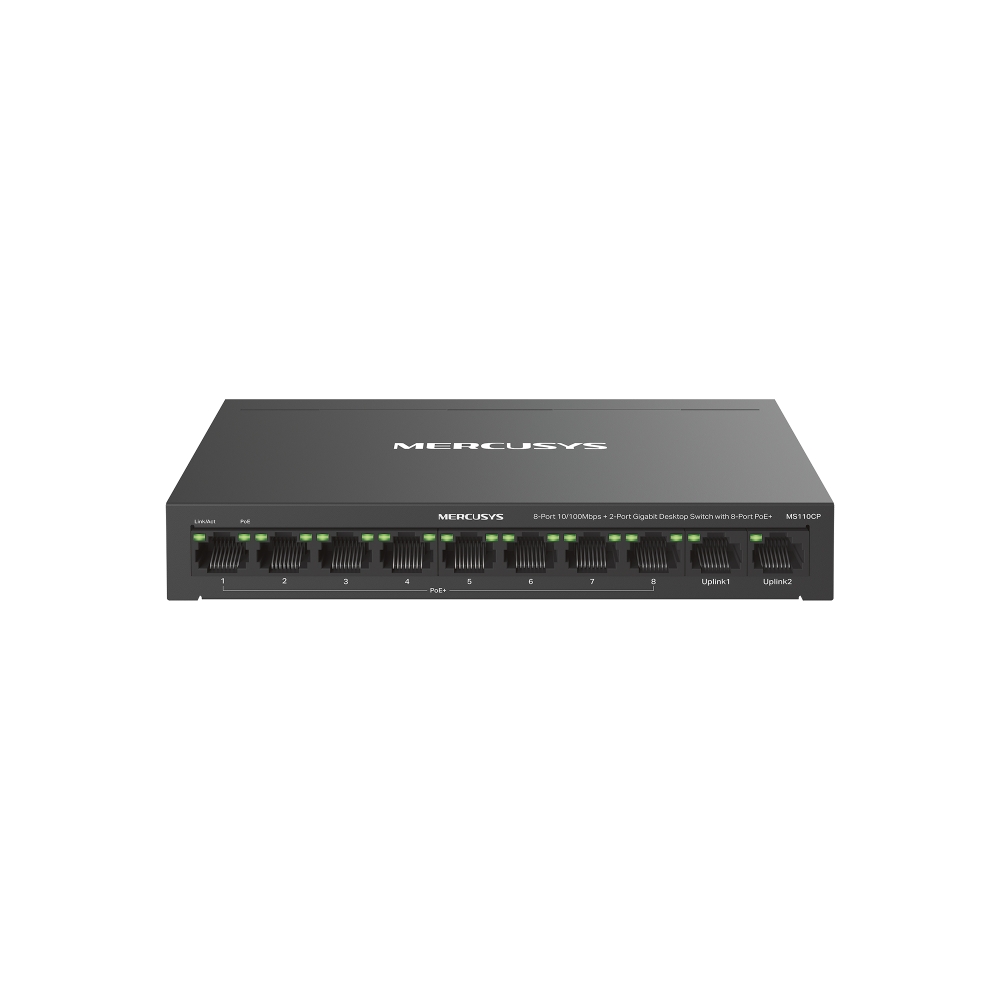

Mercusys Unmanageable Fast Ethernet PoE switch

Technical Features

• Mercusys unmanaged switch
• 10 Fast Ethernet 10/100 Mbps RJ45 ports
• 8 PoE+ ports IEEE 802.3af and IEEE 802.3at compliant
• 2 uplink RJ45 10/100 Mbps ports
• 110 W total PoE budget
• Up to 30 W per PoE port
• 2 Gbps switching capacity
• 4K address MAC table
• Extend mode for data transmission and PoE up to 250 m (820 ft)

Features

• Port isolation for enhanced security in video surveillance installations
• Automatic traffic prioritization for PoE devices
• Self-learning and self-aging MAC addresses

Power supply

• Power supply via power adapter
• 100-240 V AC power input

Environmental

• Operating temperature 0 °C to 40 °C
• Storage temperature -40 °C to 70 °C (-40 °F to 158 °F)
• Operating humidity 10 % to 90 % non-condensing
• Storage humidity 5 % to 90 % non-condensing

Physical characteristics

• Metal housing
• Fanless design
• Tabletop installation
• Dimensions: 202 × 140 × 45 mm

Contents

• TPLINK-253 Fast Ethernet PoE Unmanaged Switch (MS110CP)
• Power adapter
• Installation guide

Certifications and regulations

• CE, FCC and RoHS certifications
