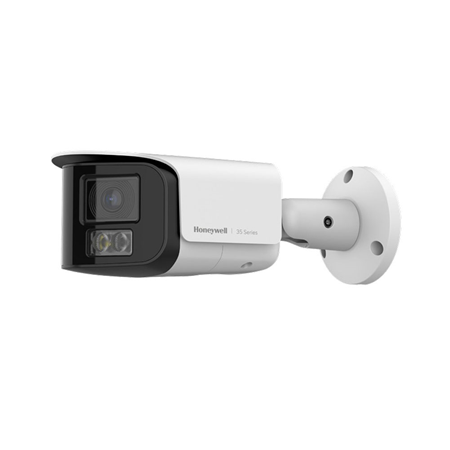

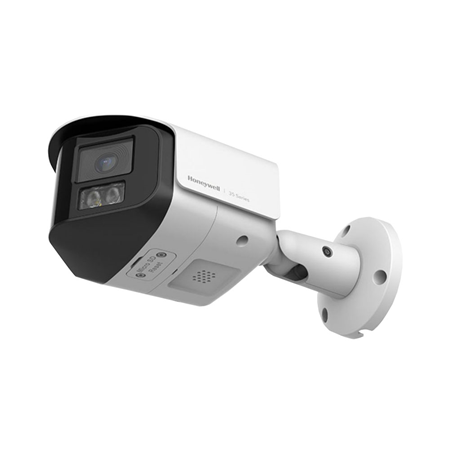

IP Bullet Camera Dual Sensor 180° Honeywell 35 Series

Technical features

• Honeywell 35 Series IP bullet camera with dual 180° sensors
• Dual CMOS 1/2.8" CMOS sensor with 5MP each
• Resolution 5MP in multi-channel mode and 8MP in splicing mode (4608 × 1728)
• Minimum illumination 0.007 lux in color and 0 lux with illumination on
• Dual illumination with 2 IR LEDs up to 30 m and 2 white lights up to 20 m
• Automatic ICR with day/night modes and schedule scheduling
• True WDR up to 120 dB with BLC and HLC
• Digital Noise Reduction 2D/3D DNR
• Fixed lens 2.4 mm F1.6
• Angle of view in splicing mode H:191.3° V:80.1° H:191.3° V:80.1° V:80.1

Video stream

• H.265 HEVC, H.264 and MJPEG with Smart Codec compression
• Number of streams: 3
• Stream 1: up to 4224 × 1848@30 fps
• Stream 2: up to 1920 × 832@30 fps
• Stream 3: up to 1920 × 832@30 ips
• Bitrate configurable up to 16 Mbps

Features

• Privacy masking up to 4 areas
• Digital defog function
• Integrated encryption chipset and Secure Boot
• Configurable regions of interest up to 8 zones

Intelligent features

• Motion detection and Smart Motion
• Line crossing and intrusion detection
• Multi-loitering and scene change detection
• People counting and face detection from camera
• Abandoned and removed object detection
• Heat map

Audio

• Full duplex two-way audio
• Built-in microphone and speaker
• 1 audio input and 1 audio output
• Codec G.711 A / G.711 Mu

Storage

• microSD slot up to 1 TB (card not included)

Alarms

• 1 alarm input and 1 alarm output
• Events with email notification and microSD recording

Network

• Ethernet 10/100 Base-TX RJ45 interface
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS, FTP/SFTP and DDNS
• ONVIF support profiles G, S, T and M
• Simultaneous access for up to 10 users

Power

• 12 VDC or PoE 44-57 V power supply
• Maximum power consumption 11.5 W

Environmental

• Operating temperature -30°C to +60°C (-30°C to +60°C)
• Relative humidity <95% non-condensing
• IP66 and IP67 protection
• Impact resistance IK10

Physical characteristics

• Metal and plastic body
• Color white RAL 9003 and black
• Adjustable dimensions 232.3~236.3~236.3 × 118.1 × Ø87 mm
• 3AXIS: Pan 0°~360°, Tilt 0°~90°, Rotation 0°~360°, Rotation 0°~360°.
• Net weight: 0.868 kg
• Gross weight: 1.163 kg

Contents

• HONEYWELL-408 (HC35WMBAR1) dual sensor 180° bullet IP camera

Certifications and Standards

• Complies with NDAA Section 889
• FCC Part 15
• CE EN55032, EN 50130-4, EN 55035, EN 62368-1
• UL/CSA 62368-1
• RCM and UKCA
• RoHS EN 63000
