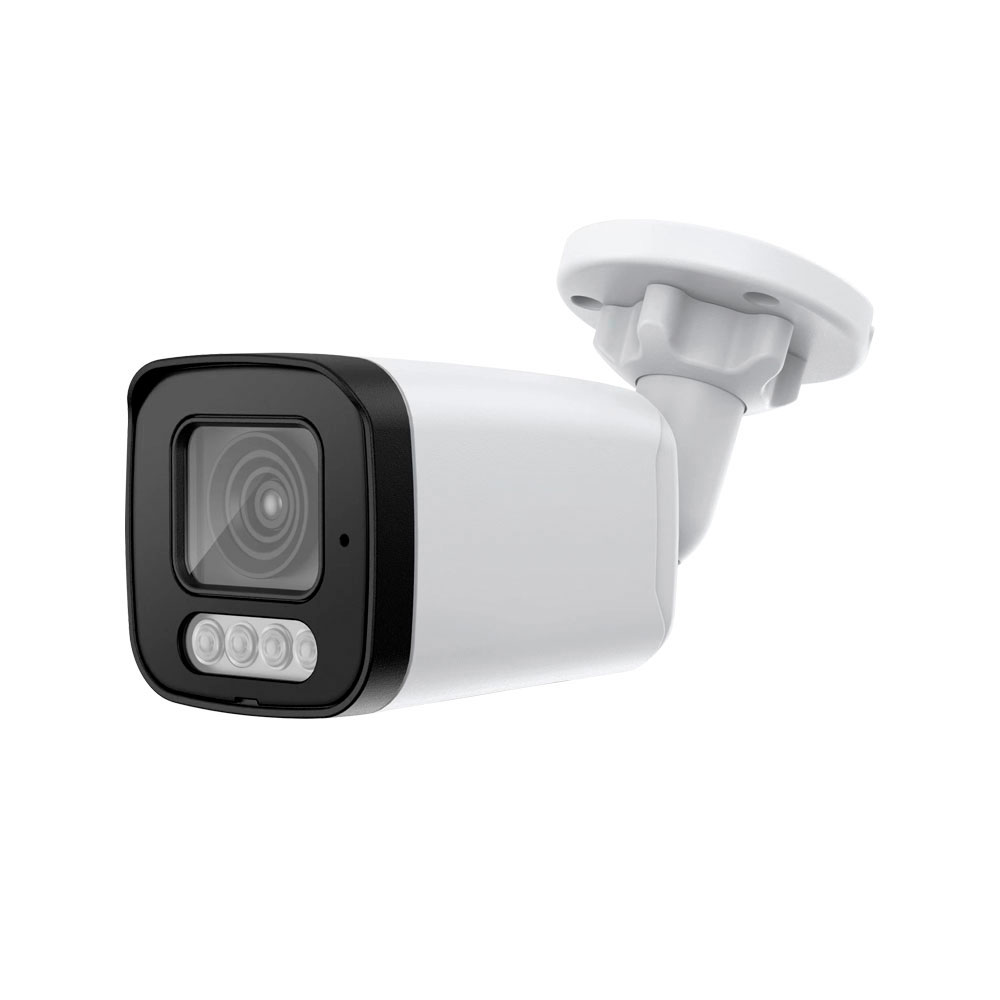

IPC-B24-L-NB | 4MP outdoor IP camera
IPC-B24-L-NBIPC-B24-L-NB4MP outdoor IP camera

4MP outdoor IP camera

IPC-B24-L-NB

IPC-B24-L-NB

Hoofd functies

  • Outdoor IP camera
  • 4MP@25ips and H.265
  • 0.006 lux
  • Smart Dual Light with IR 40 m and white light 40 m
  • Fixed lens 2.8 mm
  • Digital WDR and 3D-NR
  • Motion detection with classification of people and vehicles
  • Intrusion and line crossing detection
  • Deterrence with white light
  • Built-in microphone
  • MicroSD slot up to 256GB
  • IP67 protection
  • 12V DC or PoE power supply
  • NDAA Certification

Specificaties

Technical features

  • 4 megapixel 1/2.8" CMOS sensor
  • Up to 4MP resolution
  • Day/night mode
  • 0.006 lux and 0 lux with illumination activated
  • Smart Dual Light with 2 x 40 m IR LEDs and 2 x 40 m warm light LEDs
  • Fixed lens 2.8 mm

Video Stream

  • Video formats H.265, H.264
  • Stream 1: 4MP@25 ips
  • Stream 2: D1@25 fps
  • Stream 3: 720P@25 fps

Functionalities

  • Image modes BLC, HLC, digital WDR, 3D-NR and mirror image modes
  • White balance
  • Automatic and manual gain control
  • 4-zone video sensor
  • White light deterrence

Intelligent functions

  • Motion detection with person and vehicle classification
  • Intrusion detection with person and vehicle classification
  • Line crossing detection with classification of persons and vehicles

Audio

  • Built-in microphone

Storage

  • MicroSD card slot up to 256GB (card not included)

Communication interface

  • Reset button

Network

  • RJ45 10/100 Base-T network interface
  • Network protocols TCP/IP, UDP, HTTP, DHCP, DDNS, FTP and UPNP
  • Onvif, CGI, P2P, SDK and API support
  • Compatible with IE8 and later browsers
  • Management software
  • Compatible with IOS and Android mobile devices

Power supply

  • 12V DC or 802.3af PoE power supply
  • Maximum power consumption of 3 W

Environmental

  • Storage temperature from -40°C ~ +60°C
  • Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
  • Operating relative humidity less than 95%
  • IP67 degree of protection

Physical characteristics

  • Metal housing and plastic pedestal
  • Dimensions: 70 (W) x 70 (H) x 170 mm
  • Net weight: 420 g

Contents

  • IPC-B24-L-NB Outdoor 4MP IP Camera (IPC-B24-L-NB)

Certifications and regulations

  • Equipment complies with the NDAA requirements of the National Defense Authorization Act Section 889.
REFERENTIE / MODEL IPC-B24-L-NB / IPC-B24-L-NB
Resolutie 4MP
Audio Microfoon
IR afstand 21-40m
IP waarde IP67
Lens 2.8 mm
Speciale bescherming No
Sensor 1/2.8" CMOS
StarLight No
WDR (tegenlight) D-WDR
Codec H.264, H.265
PoE PoE
SD Slot Ja
Kleur Wit
Certificaat NDAA
Installatieomgeving Buiten
Materiaal Metaal, Plastic
Alarm kanalen Geen
Connectiviteit IP, P2P
Intelligente functies Perimeter bescherming, SMD
Compatibiliteit Onvif
