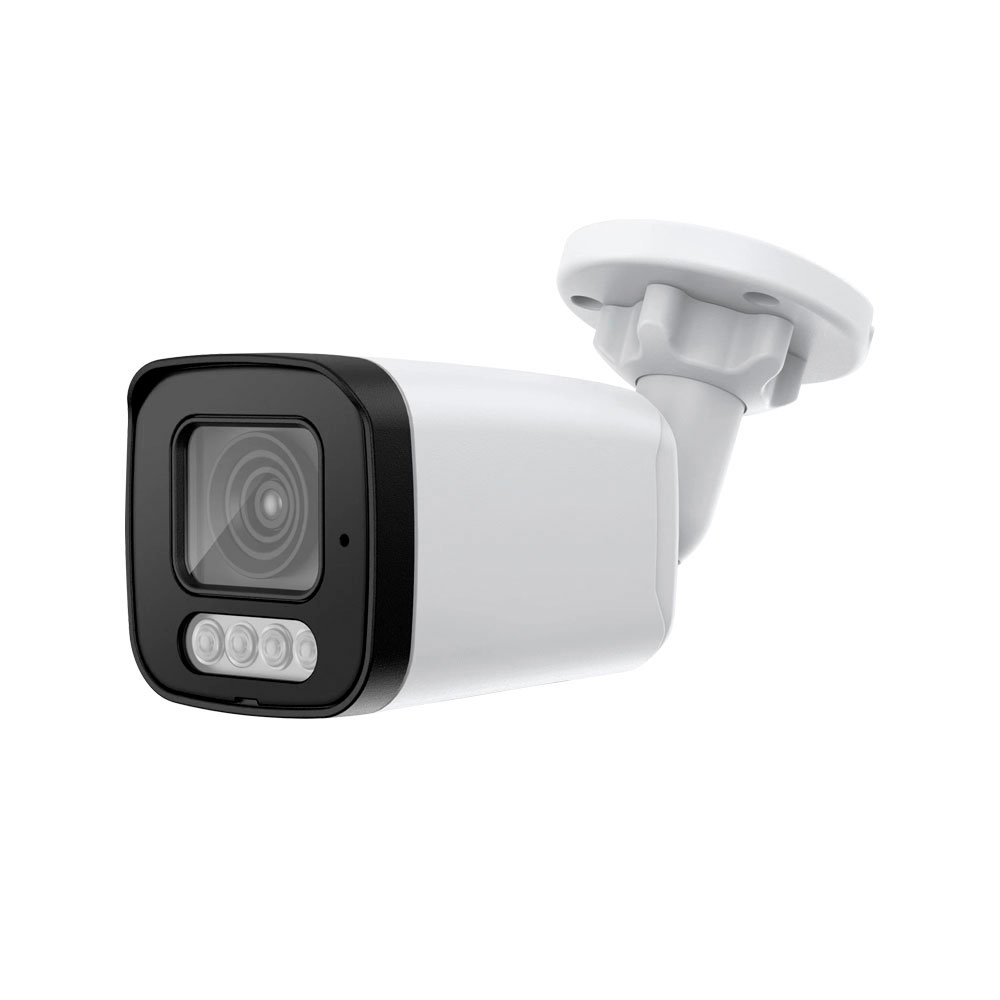

8MP outdoor IP camera

Technical features

• 1/2.8" 8-megapixel CMOS sensor
• Up to 8MP resolution
• Day/night mode
• Smart Dual Light with 2 x 40m IR LEDs and 2 x 40m warm light LEDs
• 0.007 lux in color, 0.0007 lux in B/W and 0 lux with illumination on
• Fixed lens 2.8 mm
• 107° horizontal, 56° vertical and 127° diagonal viewing angles

Video Stream

• H.265+, H.264+, H.265, H.264 video formats
• Stream 1: 8MP@20 ips
• Stream 2: D1@25 fps
• Stream 3: 720P@25 ips

Functionalities

• BLC, HLC, 120 dB WDR, digital WDR, 3D-NR and mirror image modes
• White balance
• Automatic and manual gain control
• 4-zone video sensor
• White light deterrence
• Arming/disarming available from camera menu

Intelligent features

• Intelligent motion detection with person and vehicle classification

Audio

• Built-in microphone

Storage

• MicroSD card slot up to 256GB (card not included)

Communication interface

• Reset button

Network

• RJ45 10/100 Base-T network interface
• Network protocols TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP and SMTP
• Onvif, CGI, P2P, SDK and API support
• Compatible with IE8 and later, Chrome and Firefox browsers
• Management software
• Compatible with IOS and Android mobile devices

Power supply

• 12V DC (±30%) or 802.3af PoE power supply
• Power consumption of 2.1 W in basic operation and 4.2 W max.

Environmental

• Storage temperature from -40°C ~ +60°C
• Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
• Operating relative humidity less than 95%
• IP67 degree of protection

Physical characteristics

• Metal housing and plastic pedestal
• Dimensions: 70 (W) x 70 (H) x 170 mm
• Net weight: 420 g

Contents

• IPC-B28-L-NB Outdoor 8MP IP Camera (IPC-B28-L-NB)

Certifications and regulations

• Equipment complies with the NDAA requirements of the National Defense Authorization Act Section 889.
