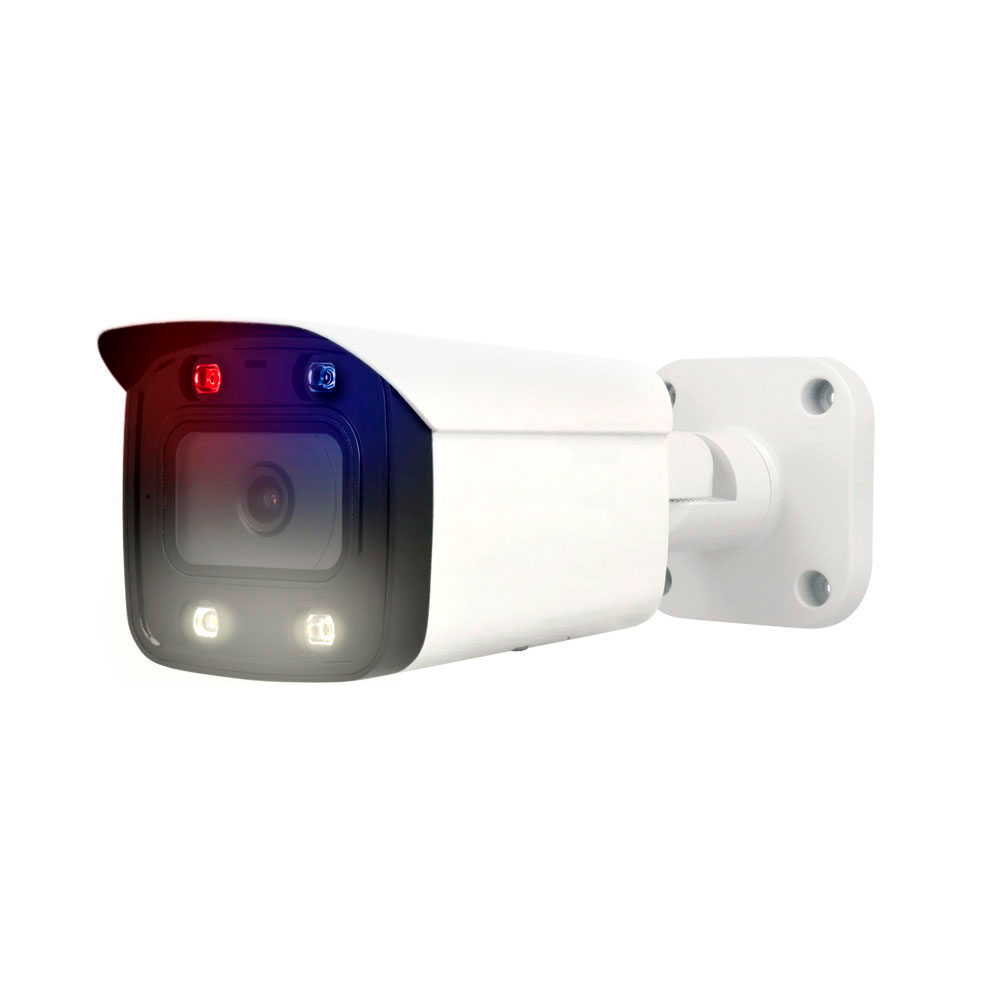

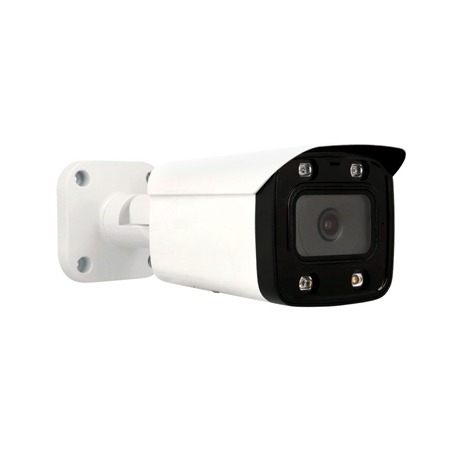

IPC-B34-L-MC-PV-NB

Outdoor IP Camera 4MP Active Deterrence Magic Color
IPC-B34-L-MC-PV-NB
IPC-B34-L-MC-PV-NB















Hoofd functies
Specificaties
- 4 megapixel 1/1.8" CMOS sensor
- H.265+, H.264+, H.265, H.264 video formats
- Resolution up to 4MP (2688x1520)
- Stream 1: 4MP (1~25/30 ips)
- Stream 2: D1 (1~25/30 fps)
- Stream 3: 720P (1~25/30 fps)
- Day/Night Mode
- Warm light 50 meters
- Features Magic Color technology for color images in any environment
- 0.006 lux, 0 lux with activated illumination
- Fixed lens 2.8 mm
- Viewing angle: 111°(H), 59°(V), 134°(D)
- Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.
- White balance
- Automatic and manual gain control
- 4-Zone video sensor and 4-Zone privacy mask
- Perimeter protection with cross-line detection and intrusion detection (supports person/vehicle classification)
- Intelligent motion detection
- Built-in active deterrent with audible and luminous alarm (blue and red lights)
- Alarm arming/disarming
- Built-in microphone and speaker
- MicroSD card slot up to 256 GB (card not included)
- Reset button
- Network interface: RJ45 (10/100 Base-T)
- Network protocols: TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP,SMTP
- Onvif, CGI, P2P, SDK and API support
- Compatible with IE8 and later, Chrome and Firefox browsers
- Management software
- Compatible with IOS and Android mobile devices
- Power supply: 12V DC (±30%) / PoE (802.3af)
- Power consumption: 2.8 W (basic), 5.5 W (maximum)
- Storage temperature: -40°C ~ +60°C (-40°C ~ +60°C)
- Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
- Operating relative humidity <95%.
- IP67 degree of protection
- Metal housing
- Dimensions: 76 (W) x 77 (H) x 224 mm
- Net weight: 760 g
| REFERENTIE / MODEL | IPC-B34-L-MC-PV-NB / IPC-B34-L-MC-PV-NB |
|---|---|
| Resolutie | 4MP |
| Serie | 3in1 |
| Audio | Microfoon || Speaker |
| IR afstand | No |
| IP waarde | IP67 |
| Lens | 2.8 mm |
| Speciale bescherming | No |
| Sensor | 1/1.8 CMOS |
| StarLight | StarLight |
| WDR (tegenlight) | WDR (120dB) |
| Codec | H.264 || H.264+ || H.265 || H.265+ |
| PoE | PoE |
| SD Slot | Ja |
| Kleur | Wit |
| Certificaat | NDAA |
| Installatieomgeving | Buiten |
| Materiaal | Metaal |
| Alarm kanalen | Geen |
| Connectiviteit | IP || YES (P2P) |
| AI Serie | Magic Color |
| Intelligente functies | Perimeter bescherming || SMD |
| Compatibiliteit | Onvif |
