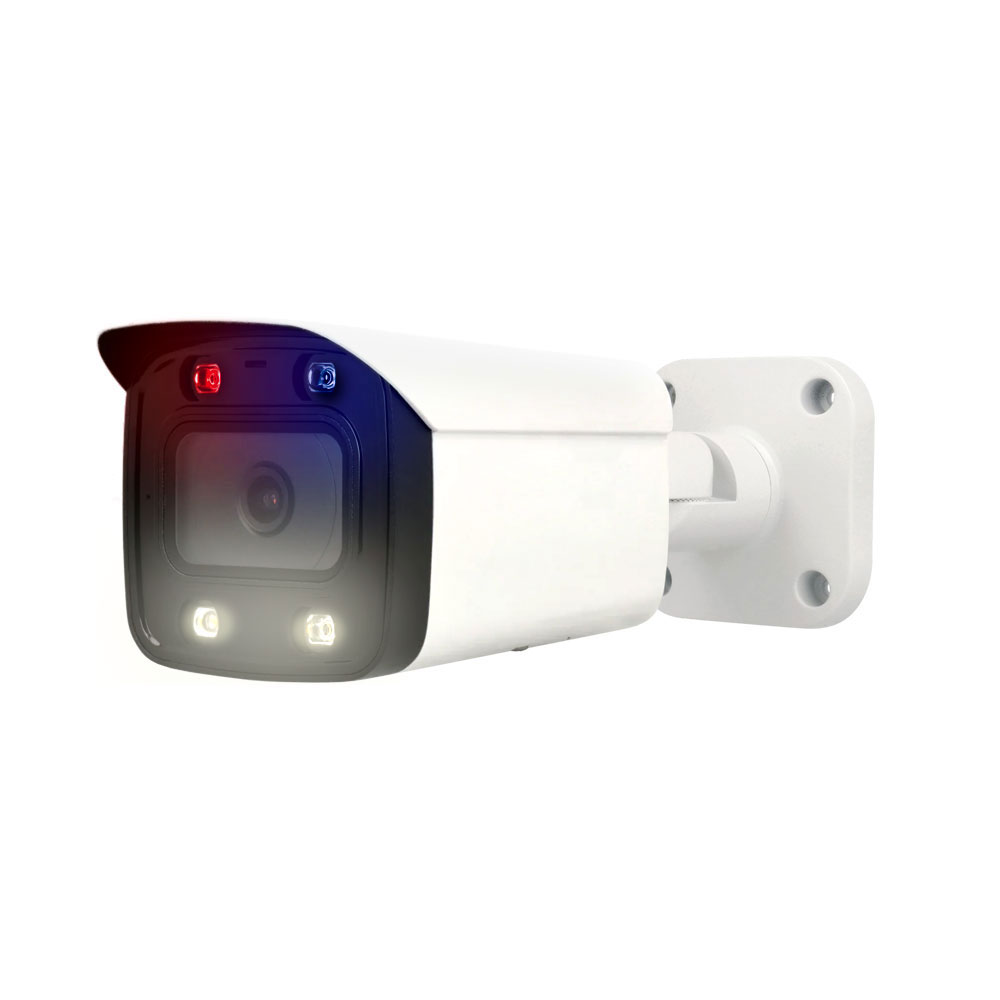

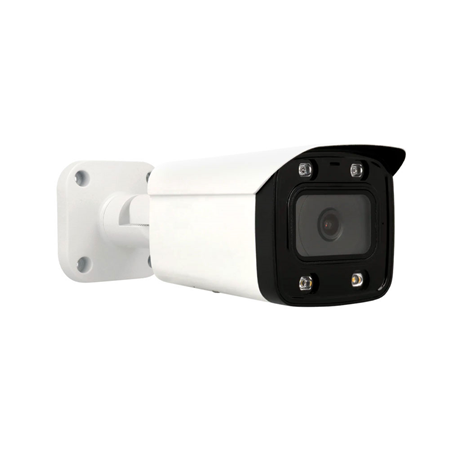

8MP Outdoor Active Deterrence IP Camera

Technical Specifications

• 8MP 1/1.8" CMOS sensor with progressive scan
• Maximum resolution of 3840 × 2160
• Minimum illumination of 0.0006 lux@F1.0 in color (30 IRE), 0.0004 lux@F1.0 in B/W (30 IRE), and 0 lux with illuminator on
• Warm light up to 50 m
• Automatic or manual illuminator control
• Fixed lens 2.8 mm
• Maximum aperture F1.0

Video stream

• H.264H, H.264M, H.264B, and H.265 compression
• Smart compression: H.264H+, H.264M+, H.264B+, and H.265+
• 3 video streams
• Stream 1: 8MP@1–25 fps
• Stream 2: D1@1–25/30 fps
• Stream 3: 1080P@1–25/30 fps
• CBR and VBR bitrate control
• H.264 bitrate up to 16,384 Kbps
• H.265 bitrate up to 16,384 Kbps

Functionalities

• Technology to optimize the image in low-light conditions
• Day/night mode in color and B/W
• BLC, HLC, 140 dB WDR, and 3D-NR
• White balance
• Automatic and manual gain control
• Configurable motion detection in 4 rectangular zones
• 180° image rotation
• Mirror function

Smart features

• SMD Smart Motion Detection
• Perimeter protection with intrusion detection and line-crossing detection
• Loitering, crowd gathering, and parking detection
• Facial detection with tracking, capture, and capture optimization
• Abandoned object and missing object detection
• Area People Counting
• Line detection
• Heat map
• AI search in conjunction with NVR

Active deterrence

• Integrated audible alarm
• Visual alarm via red and blue LEDs
• Arming and disarming the alarm

Audio

• Built-in microphone
• Built-in speaker
• Audio compression: G.711a, G.711Mu, G.726, and G.726ASF

Storage

• Storage via FTP
• MicroSD card slot supporting up to 256 GB in FAT32 (card not included)

Alarms

• Alarm events for disconnection, IP conflict, missing SD card, capacity warning, and SD card error

Network

• RJ45 10/100 Base-T network interface
• Protocols TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPoE, UPnP, and SMTP
• Compatible with ONVIF, CGI, and P2P
• SDK and API
• Up to 16 users with a total bandwidth of 80 M
• Compatible with IE8 and later, Chrome, Firefox, and Edge
• Compatible with iOS and Android mobile devices

Power

• Powered by 12 V DC (±30%) or 802.3af PoE
• Basic power consumption of 2.5 W
• Maximum power consumption: 5.2 W

Environmental

• Operating temperature: -30°C to +60°C
• Operating relative humidity less than 95%
• Storage temperature: -40°C to +60°C
• IP67 protection

Physical Characteristics

• Metal housing
• Dimensions: 224 × 77 × 76 mm
• Net weight: 770 g

Contents

• 8MP Active Deterrence IP Camera IPC-B38-L-MC-PV-V2-NB (IPC-B38-L-MC-PV-V2-NB)
