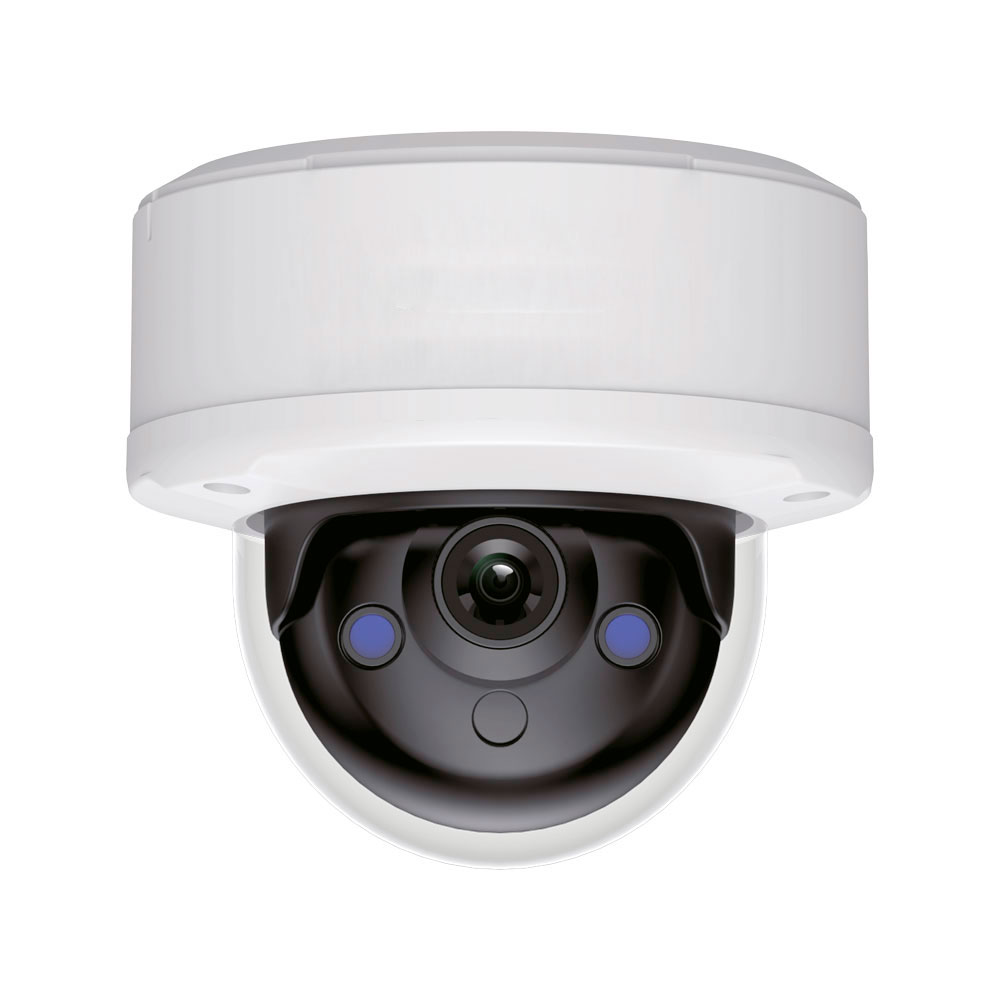

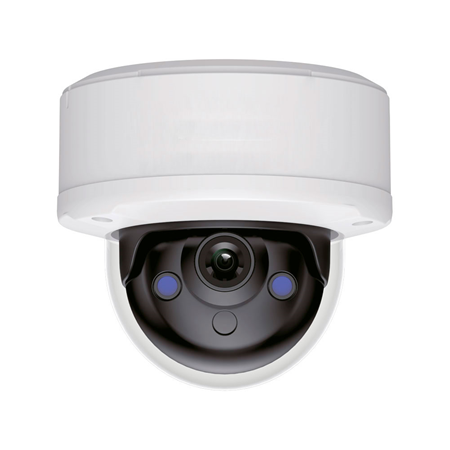

4MP outdoor IP dome

Technical features

• 4 megapixel 1/2.8" CMOS sensor
• Up to 4MP resolution
• Day/night mode
• Smart Dual Light with 30m IR light and 30m white light
• 0.01 lux F2.0
• Fixed lens 2.8mm with F2.0 maximum aperture

Video Stream

• H.265, H.264 video formats
• Stream 1: 4MP@20 ips
• Stream 2: D1@25 fps

Functionalities

• Image modes BLC, digital WDR, 3D-NR and mirror image modes
• White balance
• Automatic and manual gain control
• 4-zone video sensor

Audio

• Built-in microphone

Storage

• MicroSD card slot up to 256GB (card not included)

Communication interface

• Reset button

Network

• RJ45 10/100 Base-T network interface
• Network protocols TCP/IP, UDP, HTTP, DHCP, DDNS, FTP and UPNP
• Onvif, CGI, P2P, SDK and API support
• Compatible with IE8 and later browsers
• Management software
• Compatible with IOS and Android mobile devices

Power supply

• 12V DC (±30%) or 802.3af PoE power supply
• Maximum power consumption of 3 W

Environmental

• 30°C ~ +60°C storage temperature
• Operating temperature -20°C ~ +60°C (-20°C ~ +60°C)
• Operating relative humidity less than 95%
• IP67 degree of protection
• Vandal-proof IK10

Physical characteristics

• Metal housing
• Dimensions: Ø97 x 82 mm
• Net weight: 420 g

Contents

• IP Dome 4MP Outdoor IPC-D14-E (IPC-D14-E)

Certifications and standards

• Equipment complies with the NDAA requirements of the National Defense Authorization Act Section 889.
