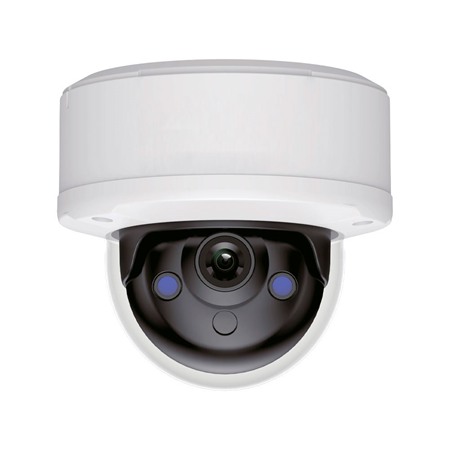

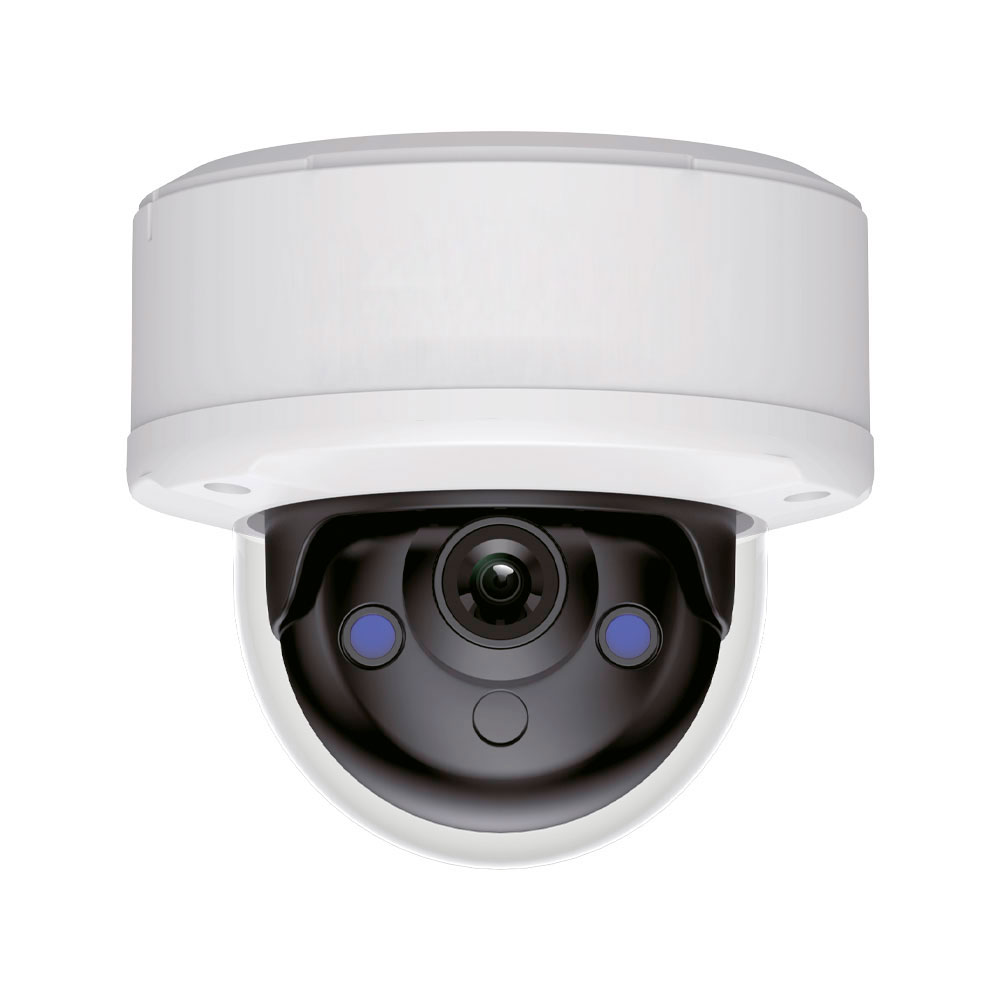

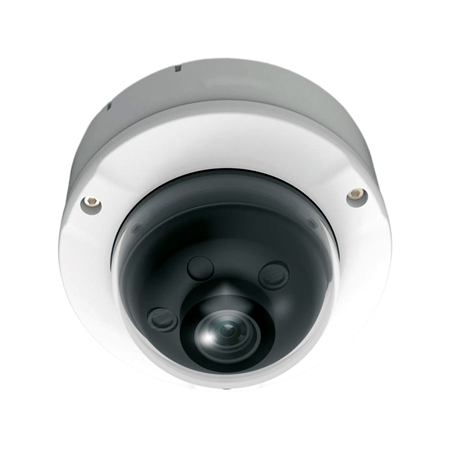

4MP vandal resistant IP dome for outdoor use

Technical features

• 4 megapixel 1/2.8" CMOS sensor
• Up to 4MP resolution
• Day/night mode
• 0.006 lux and 0 lux with illumination on
• Smart Dual Light with 30m IR light and 30m white light
• Fixed lens 2.8 mm lens with F1.6 maximum aperture

Video Stream

• H.265+, H.264+, H.265, H.264 video formats
• Stream 1: 4MP@25 ips
• Stream 2: D1@25 fps
• Stream 3: 720P@25 ips

Functionalities

• BLC, HLC, digital WDR, 3D-NR and mirror image modes
• White balance
• Automatic and manual gain control
• 4-zone video sensor
• White light deterrence

Intelligent functions

• Motion detection with person and vehicle classification
• Intrusion detection with person and vehicle classification
• Line crossing detection with classification of persons and vehicles

Audio

• Built-in microphone

Storage

• MicroSD card slot up to 256GB (card not included)

Communication interface

• Reset button

Network

• RJ45 10/100 Base-T network interface
• Network protocols TCP/IP, UDP, HTTP, DHCP, DDNS, FTP and UPNP
• Onvif, CGI, P2P, SDK and API support
• Compatible with IE8 and later browsers
• Management software
• Compatible with IOS and Android mobile devices

Power supply

• 12V DC or 802.3af PoE power supply
• Maximum power consumption of 3 W

Environmental

• Storage temperature from -40°C ~ +60°C
• Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
• Operating relative humidity less than 95%
• Degree of protection IP67
• Vandal-proof IK10

Physical characteristics

• Metal housing
• White color
• Dimensions: Ø123 x 82 mm
• Net weight: 420 g

Contents

• IPC-D24-L-NB (IPC-D24-L-NB) 4MP Vandal Resistant Outdoor IP Dome

Certifications and standards

• Equipment complies with the NDAA requirements of the National Defense Authorization Act Section 889.
