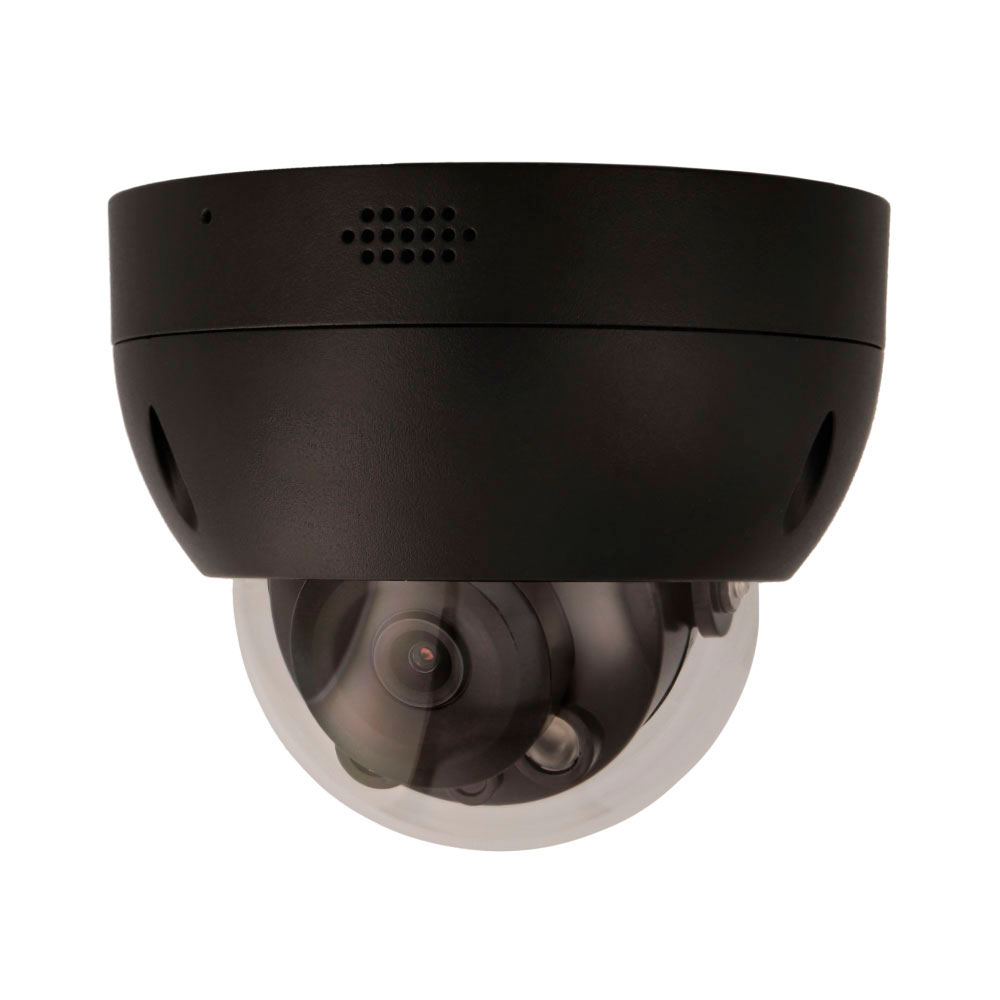

4MP black outdoor IP dome

Technical features

• 1/2.8" CMOS sensor with 4 megapixels
• Up to 4MP resolution (2688x1520)
• Day/night mode
• 0.006 lux and 0 lux with illumination activated
• Smart Dual Light with 40m IR light and 40m white light
• Motorized lens 2.7~13.5mm
• Viewing angle of 99°~28° horizontal, 71°~21° vertical and 134°~35° diagonal

Video Stream

• H.265+, H.264+, H.265, H.264 video formats
• Stream 1: 4MP@25 ips
• Stream 2: D1@25 fps

Functionalities

• BLC, HLC, digital WDR, 3D-NR and mirror image modes
• White balance
• Automatic and manual gain control
• 4-zone video sensor
• 4-zone privacy mask
• White light deterrence
• Arm/disarm

Intelligent features

• Motion detection with person and vehicle classification
• Intrusion detection with person and vehicle classification
• Line crossing detection with classification of persons and vehicles

Audio

• Built-in microphone
• Built-in speaker with audio clips and two-way audio

Storage

• MicroSD card slot up to 256GB (card not included)

Communication interface

• Reset button

Network

• RJ45 10/100 Base-T network interface
• Network protocols TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP and SMTP
• Onvif, CGI, P2P, SDK and API support
• Up to 20 users
• Compatible with IE8 and later, Chrome and Firefox browsers
• Management software
• Compatible with iOS and Android mobile devices

Power supply

• 12V DC or 802.3af PoE power supply
• Power consumption of 2.8 W in basic operation and 6.5 W max.

Environmental

• Operating temperature from -30°C ~ +60°C
• IP67 degree of protection
• Vandal resistant IK10 protection

Physical characteristics

• Metal housing
• Black color
• Dimensions: Ø122 x 102 mm
• Net weight: 520 g

Contents

• IPC-D24-ZAS-L-B (IPC-D24-ZAS-L-B) 4MP outdoor vandal-resistant IP dome in black color.

Certifications and standards

• Equipment complies with the NDAA requirements of the National Defense Authorization Act Section 889.
