IPC-D34L-ZAS-MC-NB | 4MP vandal resistant IP dome with Motorized lens for outdoor use
IPC-D34L-ZAS-MC-NBIPC-D34L-ZAS-MC-NB4MP vandal resistant IP dome with Motorized lens for outdoor use
IPC-D34L-ZAS-MC-NB_1
IPC-D34L-ZAS-MC-NB_2

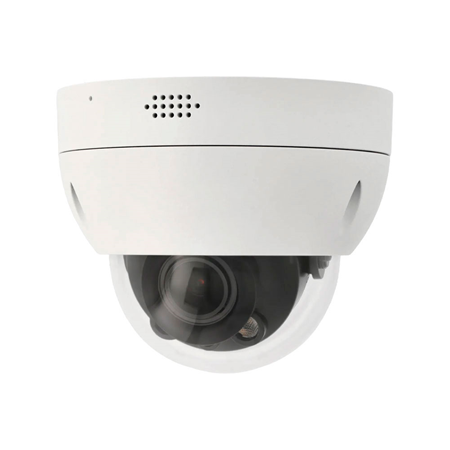

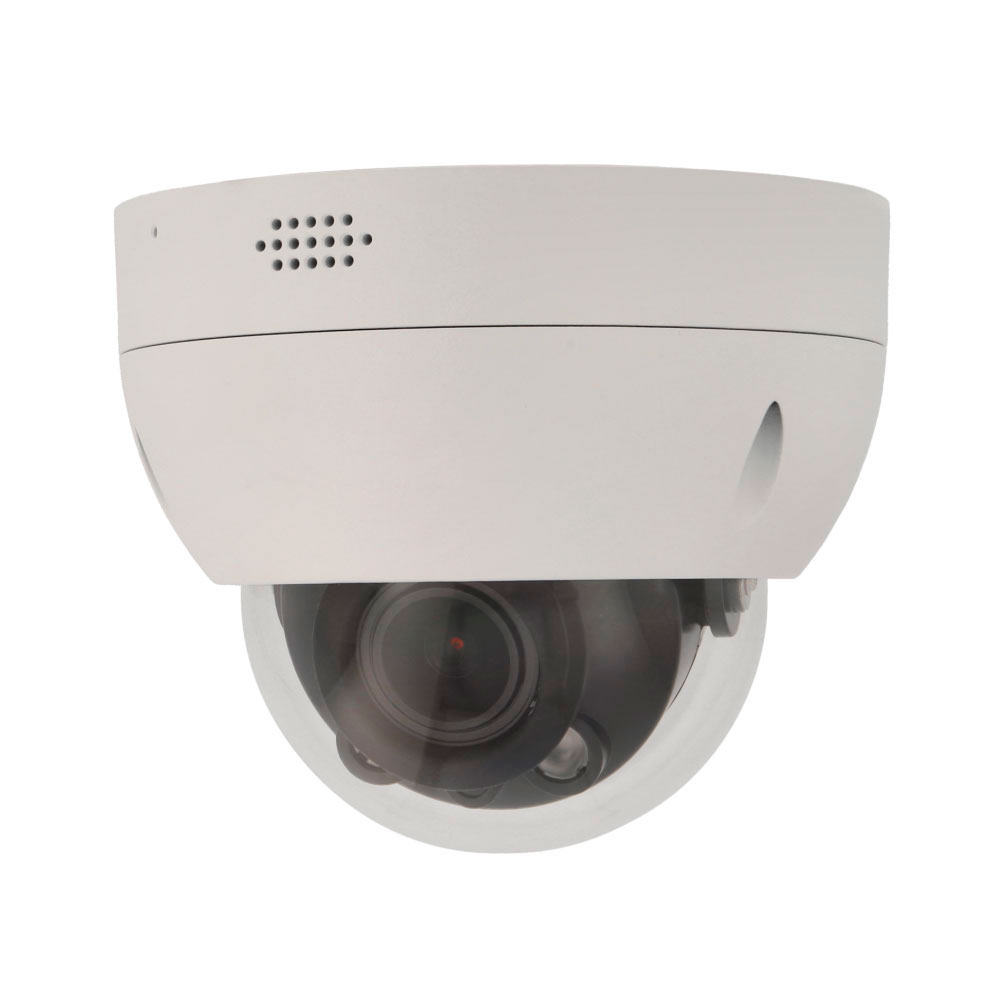

4MP vandal resistant IP dome with Motorized lens for outdoor use

IPC-D34L-ZAS-MC-NB

IPC-D34L-ZAS-MC-NB

Hoofd functies

  • Vandal resistant IP dome for outdoor use
  • 4MP@25ips and H.265+
  • Technology Magic Color and Smart Dual Light with IR 40 m and white light 40 m
  • Motorized lens 2.7~13.5 mm
  • WDR 120 dB and digital WDR
  • Motion detection, intrusion and line crossing with classification of people and vehicles
  • Built-in microphone and speaker
  • MicroSD slot up to 256GB
  • IP67 and IK10 protection
  • 12V DC or PoE power supply
  • NDAA Certification

Specificaties

Thanks to the Advanced AI processor, Magic Color technology takes your images to an exceptional level of perfection. This intelligent processor optimizes each frame by reducing noise, improving dynamic range and adjusting colors, thus delivering superior visual quality. Designed to operate in varying lighting conditions, Magic Color ensures sharp and consistent images, making it the foundation for advanced video surveillance solutions.

Technical Features

  • 4 megapixel 1/2.8" CMOS sensor
  • Up to 4MP resolution (2688x1520)
  • Day/night mode
  • Magic Color technology for color images in any environment
  • Smart Dual Light with 40-meter IR light and 40-meter white light
  • 0.006 lux and 0 lux with illumination on
  • Motorized lens 2.7~13.5 mm

Video Stream

  • H.265+, H.264+, H.265, H.264 video formats
  • Stream 1: 4MP@25 ips
  • Stream 2: D1@25 fps
  • Stream 3: 720P@25 ips

Functionalities

  • BLC, HLC, 120 dB WDR, digital WDR, 3D-NR and mirror image modes
  • White balance
  • Automatic and manual gain control
  • 4-zone video sensor
  • 4-zone privacy mask
  • White light deterrence

Intelligent features

  • Motion detection with person and vehicle classification
  • Intrusion detection with person and vehicle classification
  • Line crossing detection with person and vehicle classification

Audio

  • Built-in microphone
  • Integrated loudspeaker

Storage

  • MicroSD card slot up to 256GB (card not included)

Communication interface

  • Reset button

Network

  • RJ45 10/100 Base-T network interface
  • Network protocols TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP and SMTP
  • Onvif, CGI, P2P, SDK and API support
  • Up to 20 users
  • Compatible with IE8 and later, Chrome and Firefox browsers
  • Management software
  • Compatible with iOS and Android mobile devices

Power supply

  • 12V DC or 802.3af PoE power supply
  • Power consumption of 2.8 W in basic operation and 6.5 W max.

Environmental

  • Storage temperature from -40°C ~ +60°C
  • Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
  • Operating relative humidity less than 95%
  • IP67 degree of protection
  • Vandal-proof IK10

Physical characteristics

  • Metal housing
  • White color
  • Dimensions: Ø122 x 102 mm
  • Net weight: 520 g

Contents

  • IPC-D34L-ZAS-MC-NB (IPC-D34L-ZAS-MC-NB) 4MP outdoor vandal-resistant IP dome with Motorized lens

Certifications and standards

  • Equipment complies with the NDAA requirements of the National Defense Authorization Act Section 889.
REFERENTIE / MODEL IPC-D34L-ZAS-MC-NB / IPC-D34L-ZAS-MC-NB
Resolutie 4MP
Audio Microfoon, Speaker
IR afstand 21-40m
IP waarde IP67
Lens Gemotoriseerd 2.7~13.5 mm
Speciale bescherming Antivandaal (IK10)
Sensor 1/2.8" CMOS
StarLight No
WDR (tegenlight) D-WDR, WDR (120dB)
Codec H.264, H.264+, H.265, H.265+
PoE PoE
SD Slot Ja
Kleur Wit
Certificaat NDAA
Installatieomgeving Buiten
Materiaal Metaal
Alarm kanalen Geen
Connectiviteit IP, P2P
AI Serie Magic Color
Intelligente functies Perimeter bescherming, SMD
Compatibiliteit Onvif
