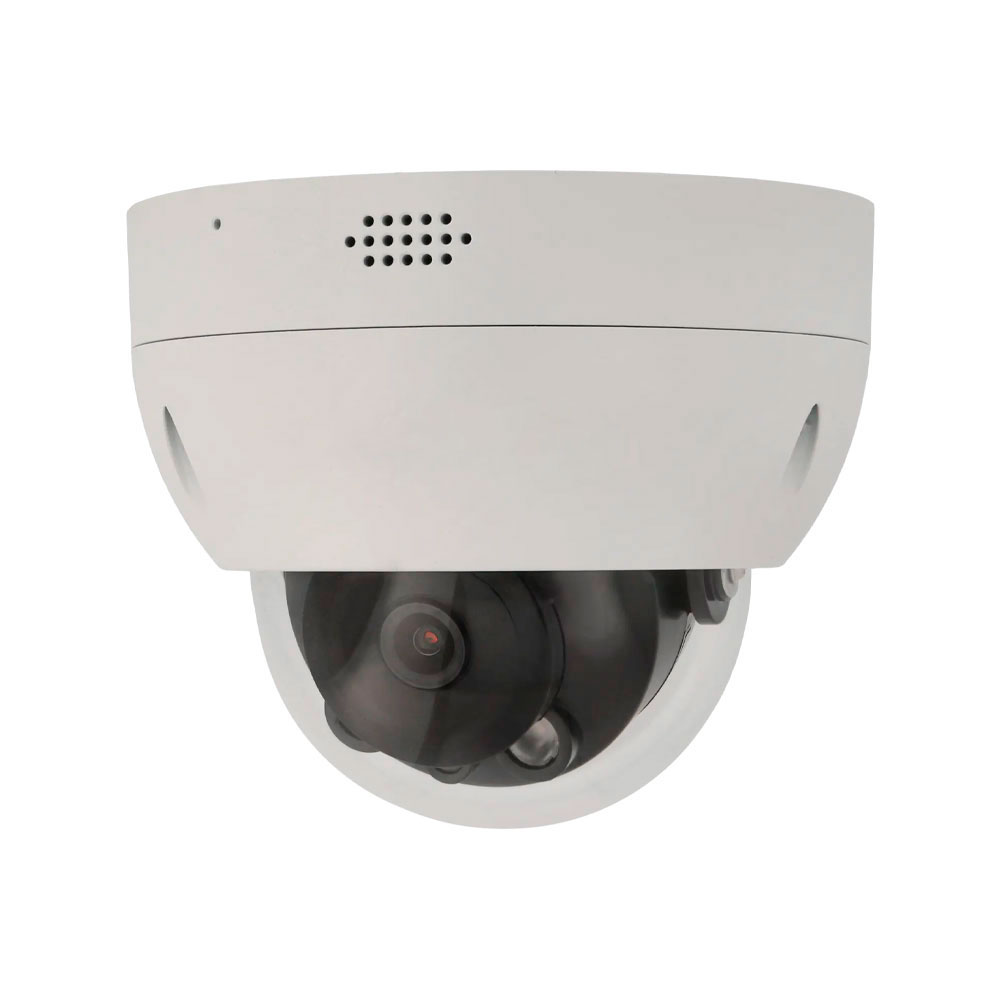

6MP vandal resistant IP dome for outdoor use

Technical features

• 1/2.7" 6-megapixel CMOS sensor
• Up to 6MP resolution (3072x1944)
• Day/night mode
• 0.002 lux in color, 0.0002 lux in B/W and 0 lux with activated illumination
• Smart Dual Light with 50-meter IR light and 50-meter white light
• Fixed lens 2.8 mm
• Viewing angle 111° horizontal, 59° vertical and 134° diagonal

Video Stream

• H.265+, H.264+, H.265, H.264 video formats
• Stream 1: 6MP@25 ips
• Stream 2: D1@25 fps
• Stream 3: 720P@25 ips

Functionalities

• BLC, HLC, 120 dB WDR, digital WDR, 3D-NR and mirror image modes
• White balance
• Automatic and manual gain control
• 4-Zone video sensor and 4-Zone privacy mask
• White light deterrence
• Arming/disarming available from camera menu

Intelligent features

• Motion detection with person and vehicle classification
• Intrusion detection with person and vehicle classification
• Line crossing detection with person and vehicle classification
• Face detection
• People counting
• Heat map
• Loitering detection
• Abandoned object detection
• Lost object detection
• Crowd detection
• Parking detection
• AI video metadata

Audio

• Built-in microphone
• Built-in speaker with audio clips and two-way audio
• External audio input/output

Storage

• MicroSD card slot up to 256GB (card not included)

Alarms

• Alarm input/output cable

Communication interface

• Reset button

Network

• RJ45 10/100 Base-T network interface
• Network protocols TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP and SMTP
• Onvif, CGI, P2P, SDK and API support
• Up to 20 users
• Compatible with IE8 and later, Chrome and Firefox browsers
• Management software
• Compatible with iOS and Android mobile devices

Power supply

• 12V DC or 802.3af PoE power supply
• Power consumption of 2.5 W in basic operation and 5.2 W max.

Environmental

• Storage temperature of -40°C ~ +60°C
• Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
• Operating relative humidity less than 95%
• Degree of protection IP67
• Vandal-proof IK10

Physical characteristics

• Metal housing
• Dimensions: Ø122 x 102 mm
• Net weight: 490 g

Contents

• IPC-D36-AS-L-NB (IPC-D36-AS-L-NB) 6MP outdoor vandal-resistant IP dome

Certifications and standards

• Equipment complies with the NDAA requirements of the National Defense Authorization Act Section 889.
