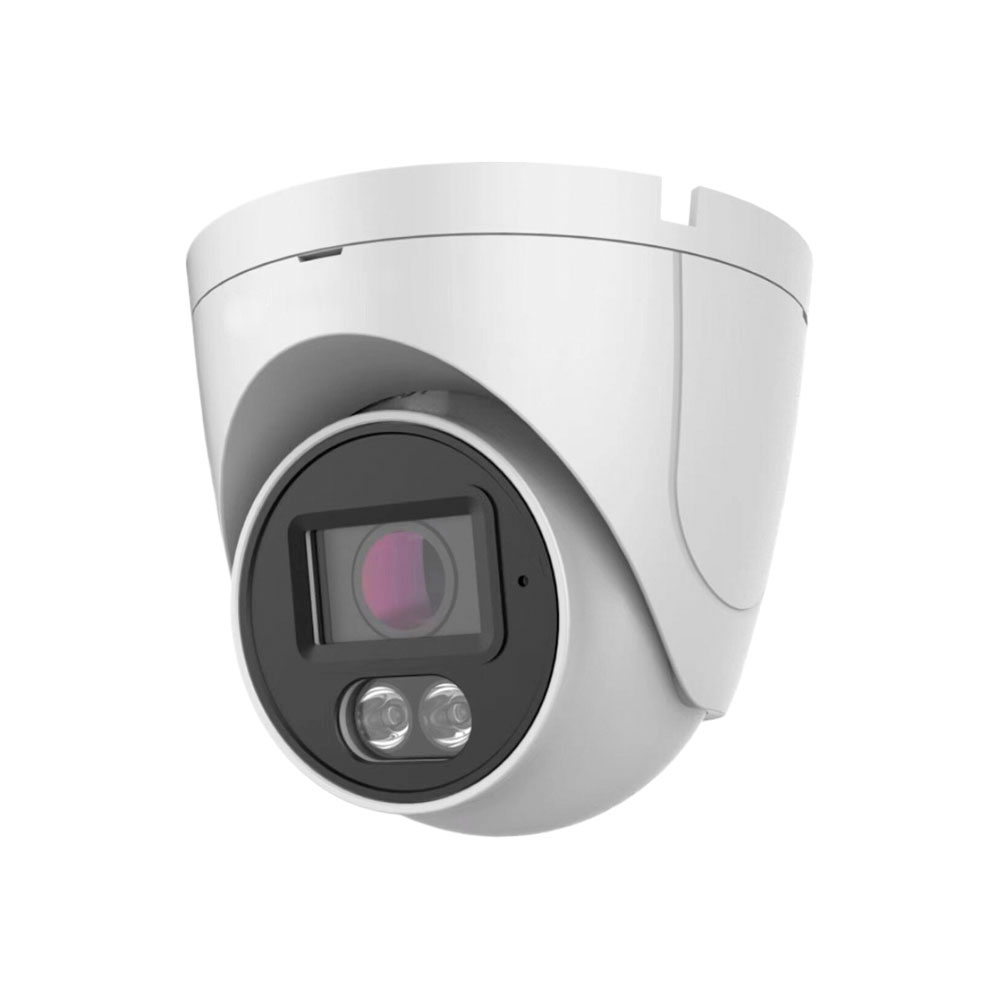

4MP Dual Light Eco IP Dome for outdoor applications

IPC-T14-E-NB

IPC-T14-E-NB

Hoofd functies

IP Dome
4MP@20/25ips, H.265
0.01 lux, Smart Dual Light 30m
Fixed lens 2.8 mm
Digital WDR, 3D-NR
Built-in microphone
SD slot, reset button
RJ45, Onvif, IP67, PoE.

Specificaties

4 megapixel 1/2.8" CMOS sensor
H.265, H.264 video formats
Up to 4MP resolution
Stream 1: 4MP (1~20/25 fps)
Stream 2: D1 (1~25/30 fps)
Day/Night mode
Smart Dual LightDay/night mode: IR light (30 meters) + white light (30 meters)
0.01 lux F2.0
Fixed lens 2.8 mm with a maximum F2.0 aperture.
Image modes: BLC, digital WDR, 3D-NR, Mirror.
White balance
Automatic and manual gain control
4-Zone video sensor
Built-in microphone
MicroSD card slot up to 256GB (not included)
Reset button
Network interface: RJ45 (10/100 Base-T)
Network protocols: TCP/IP, UDP, HTTP, DHCP, DDNS, FTP, UPNP
Onvif, CGI, P2P, SDK and API support
Compatible with IE8 and later browsers
Management software
Compatible with IOS and Android mobile devices
Power supply: 12V DC (±30%) / PoE (802.3af)
Maximum power consumption: 3 W
Storage temperature from -30°C ~ +60°C
Operating temperature from -20°C ~ +60°C
Operating relative humidity <95%.
IP67 degree of protection
Metal inner core and plastic housing
Dimensions: Ø102 x 120 mm
Net weight: 390 g

REFERENTIE / MODEL	IPC-T14-E-NB / IPC-T14-E-NB
Resolutie	4MP
Audio	Microfoon
IR afstand	21-40m
IP waarde	IP67
Lens	2.8 mm
Speciale bescherming	No
Sensor	1/2.8" CMOS
StarLight	No
WDR (tegenlight)	D-WDR
Codec	H.264 \|\| H.265
PoE	PoE
SD Slot	Ja
Kleur	Wit
Certificaat	NDAA
Installatieomgeving	Buiten
Materiaal	Metaal
Alarm kanalen	Geen
Connectiviteit	IP \|\| YES (P2P)
Intelligente functies	Geen
Compatibiliteit	Onvif
