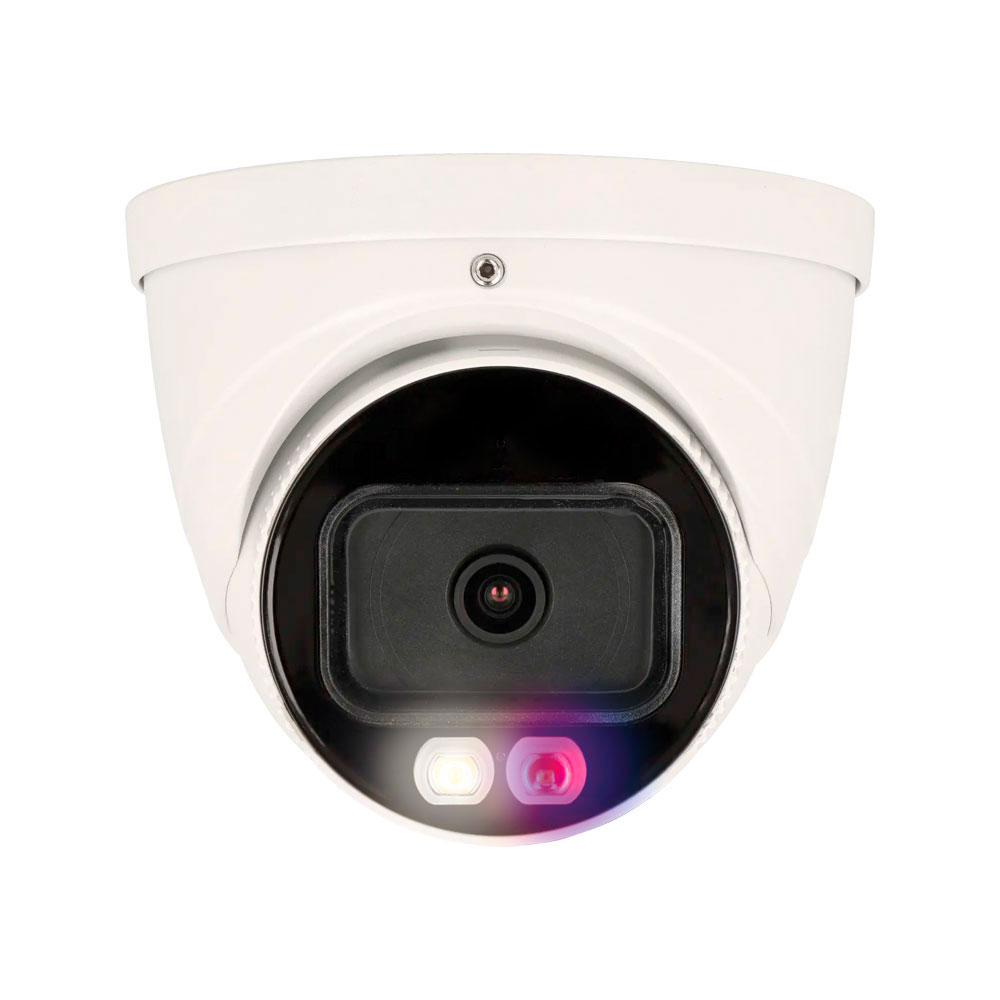

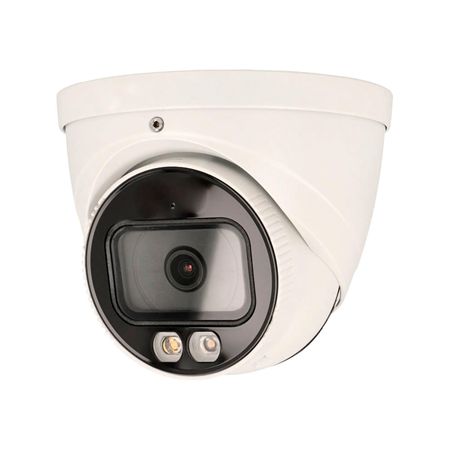

4MP outdoor IP dome

Technical features

• 1/2.8" CMOS sensor with 4 megapixels
• Up to 4MP resolution (2688x1520)
• Day/night mode
• Smart Dual Light with 40 meter IR light and 40 meter white light
• 0.006 lux and 0 lux with illumination activated
• Fixed lens 2.8mm illumination
• 111° horizontal, 59° vertical and 134° diagonal angle of view

Video Stream

• H.265+, H.264+, H.265, H.264 video formats
• Stream 1: 4MP@25 ips
• Stream 2: D1@25 fps

Functionalities

• BLC, HLC, digital WDR, 3D-NR and mirror image modes
• White balance
• Automatic and manual gain control
• 4-zone video sensor
• 4-zone privacy mask
• White light deterrence
• Arm/disarm

Intelligent features

• Motion detection with person and vehicle classification
• Intrusion detection with person and vehicle classification
• Line crossing detection with classification of persons and vehicles

Active deterrence

• Integrated audible and visual alarm
• Blue and red lights for active deterrence

Audio

• Integrated microphone
• Built-in speaker

Storage

• MicroSD card slot up to 256GB (card not included)

Communication interface

• Reset button

Network

• RJ45 10/100 Base-T network interface
• Network protocols TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP and SMTP
• Onvif, CGI, P2P, SDK and API support
• Compatible with IE8 and later, Chrome and Firefox browsers
• Management software
• Compatible with iOS and Android mobile devices

Power supply

• 12V DC (±30%) or 802.3af PoE power supply
• Power consumption of 2.8 W in basic operation and 5.5 W max.

Environmental

• Storage temperature from -40°C ~ +60°C
• Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
• Operating relative humidity less than 95%
• IP67 degree of protection

Physical characteristics

• Metal housing
• Dimensions: Ø122 x 110 mm
• Net weight: 630 g

Contents

• IPC-T34-AS-PV 4MP outdoor IP dome (IPC-T34-AS-PV)

Certifications and standards

• Equipment complies with the NDAA requirements of the National Defense Authorization Act Section 889.
