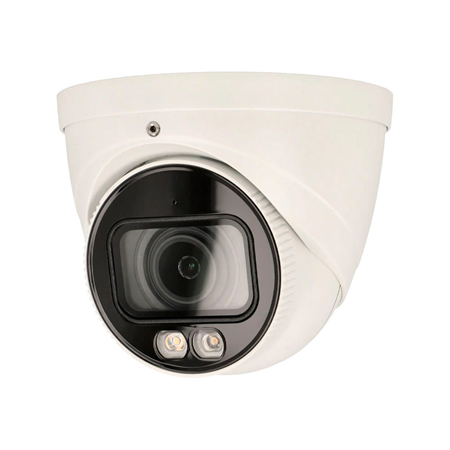

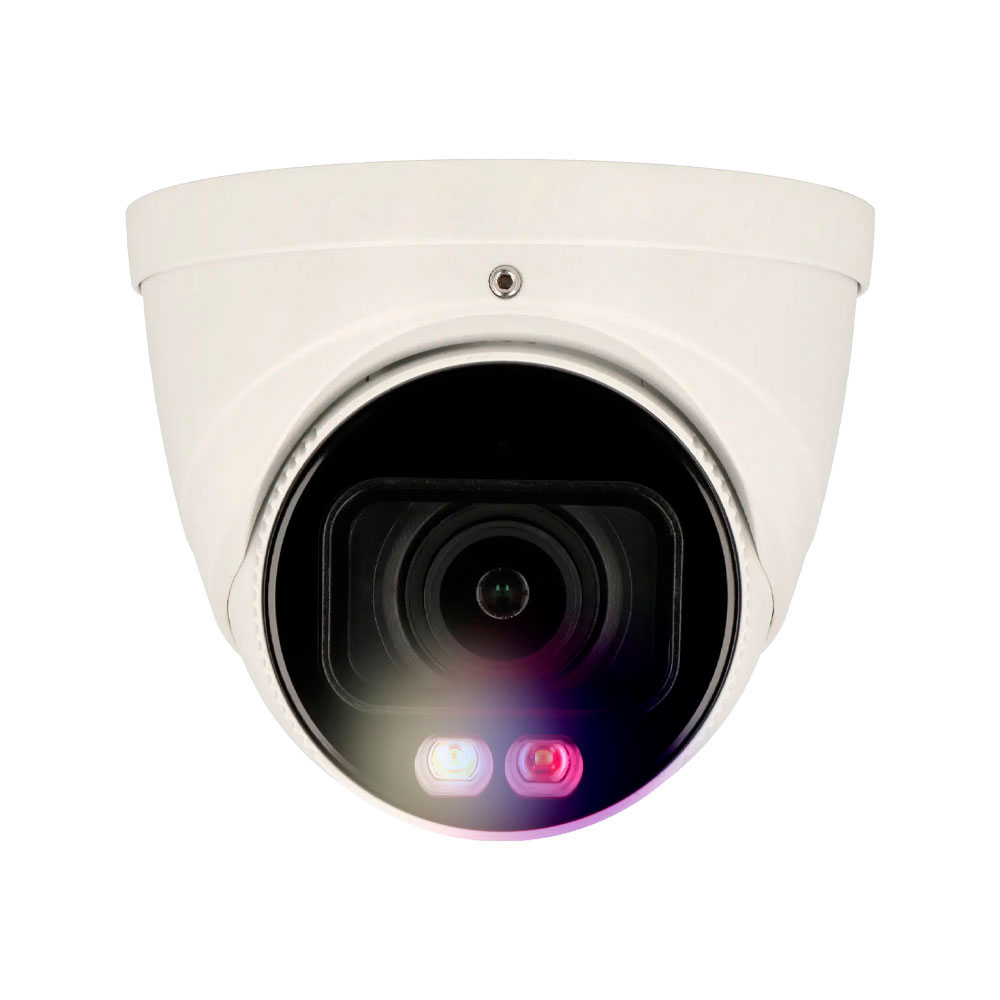

8MP outdoor IP dome

Technical features

• 1/2.7" 8-megapixel CMOS sensor
• Up to 8MP resolution (3840x2160)
• Day/night mode
• 0.007 lux in color, 0.0007 lux in B/W and 0 lux with activated illumination
• Smart Dual Light with 40 meters IR light and 40 meters white light
• Motorized lens 2.7~13.5mm
• Viewing angle 109°~30° horizontal, 56°~17° vertical and 131°~35° diagonal

Video Stream

• H.265+, H.264+, H.265, H.264 video formats
• Stream 1: 8MP@20 ips
• Stream 2: D1@25 fps

Functionalities

• Image modes BLC, HLC, 120 dB WDR, Digital WDR, 3D-NR and Mirror
• White balance
• Automatic and manual gain control
• 4-zone video sensor
• 4-zone privacy mask
• White light deterrence
• Arming/disarming available from camera menu

Intelligent features

• Motion detection with person and vehicle classification
• Intrusion detection with person and vehicle classification
• Line crossing detection with person and vehicle classification

Active deterrence

• Integrated audible and visual alarm
• Blue and red lights for active deterrence

Audio

• Integrated microphone
• Built-in speaker with audio clips and two-way audio

Storage

• MicroSD card slot up to 256GB (card not included)

Communication interface

• Reset button

Network

• RJ45 10/100 Base-T network interface
• Network protocols TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP and SMTP
• Onvif, CGI, P2P, SDK and API support
• Up to 20 users
• Compatible with IE8 and later, Chrome and Firefox browsers
• Management software
• Compatible with IOS and Android mobile devices

Power supply

• 12V DC (±30%) or 802.3af PoE power supply
• Power consumption of 2.5 W in basic operation and 6.2 W max.

Environmental

• Storage temperature from -40°C ~ +60°C
• Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
• Operating relative humidity less than 95%
• IP67 degree of protection

Physical characteristics

• Metal housing
• Dimensions: Ø122 x 110 mm
• Net weight: 670 g

Contents

• IPC-T38L-ZAS-PV 8MP outdoor IP dome (IPC-T38L-ZAS-PV)

Certifications and standards

• Equipment complies with the NDAA requirements of the National Defense Authorization Act Section 889.
