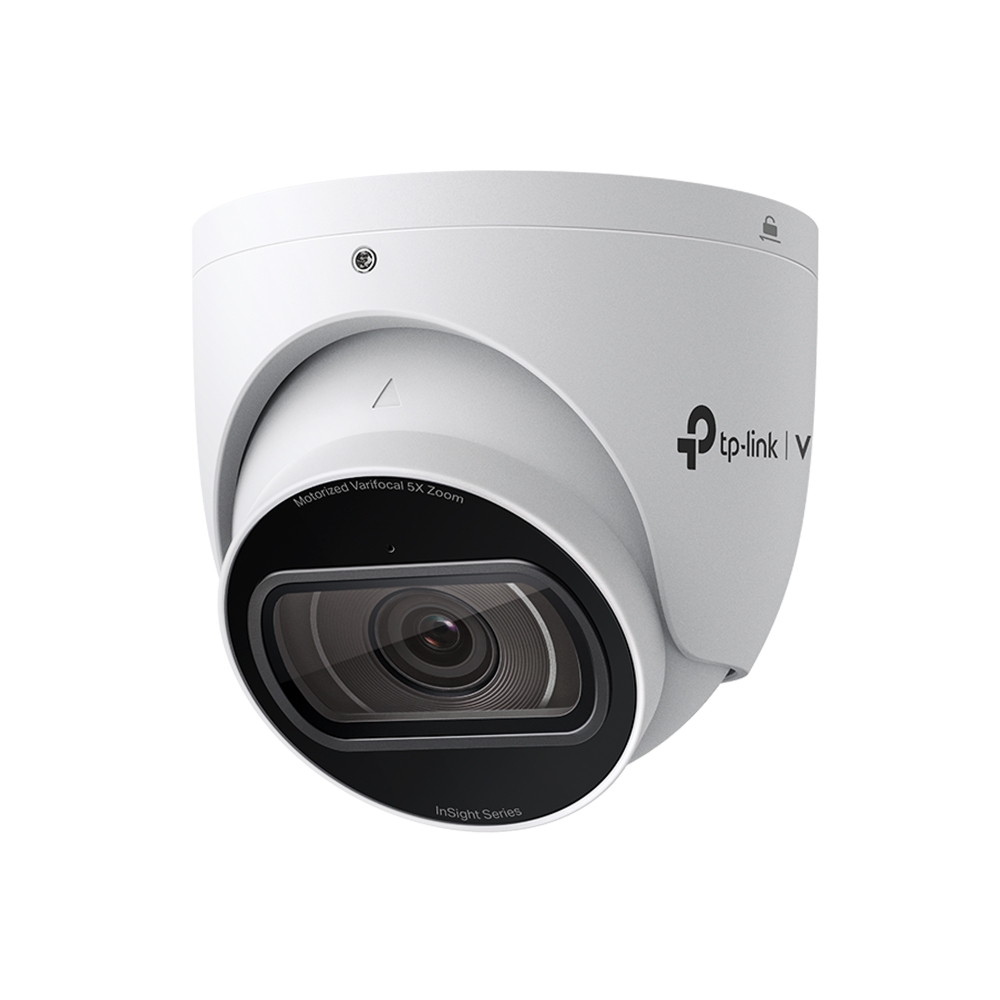

Motorized 4MP varifocal IP minidome with active deterrence and advanced analytics

Name: TPLINK-158
SKU: InSight S445ZI
Availability: InStock
Rating: 5 (59 reviews)

TPLINK-158

InSight S445ZI

Hoofd functies

TP-Link VIGI 4MP@30ips IP Minidome
Varifocal lens motorized 2.7-13.5mm
0.005 lux, IR 60m
WDR 120 dB, BLC, HLC, Smart IR, 3D DNR
Active deterrence with white light and audible warning
Classification of people and vehicles
Microphone and loudspeaker
Alarm interface
MicroSD slot
IP67 and IK10 protection
PoE

Specificaties

1/2.9" progressive CMOS sensor with a maximum resolution of 2688 × 1520
Varifocal lens 2.7-13.5 mm motorized, F1.6 aperture, 5× optical zoom
Viewing angle: 29.6°-102.0° (H), 16.8°-53.8° (V), 34.1°-122.8° (D)
Resolutions supported: 4MP (2688 × 1520), 4MP (2560 × 1440), 3MP (2304 × 1296), 2MP (2048 × 1280), 1080P (1920 × 1080), 720P (1280 × 720), WVGA (848 × 480), D1 (704 × 576), VGA (640 × 480), nHD (640 × 360), CIF (352 × 288), QVGA (320 × 240)
Stream 1: 4MP, 4MP (QHD), 3MP, 2MP, 1080P (1~25/30 ips)
Stream 2: 720P, WVGA, D1, VGA, nHD, CIF, QVGA (1~25/30 fps)
Video compression: H.265+, H.265, H.264+, H.264
Day/night mode with removable mechanical IR filter
0.005 lux (color), 0 lux with IR
4 IR LEDs (850 nm) with up to 60 m range
Image functions: 120 dB WDR, BLC, HLC, Smart IR, 3D DNR, ROI, privacy mask (up to 4 zones)
Intelligent functions:
- People and vehicle classification
- Intrusion detection
- Line crossing detection
- Region entry/exit detection
- Abandoned/removed object detection
- Loitering detection
- Anomalous sound detection
- Scene change detection
- Person detection
- Vehicle detection
- Motion detection
Active deterrence with audible warning and white light
Built-in microphone and speaker for two-way audio
Audio interface: 1 input and 1 output
Alarm interface: 1 input and 1 output
MicroSD card storage up to 512 GB (card not included)
ONVIF compatible (Profile S, T, G)
Network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, FTP/SFTP, RTP, IPv4, IPv6, ARP, SSL/TLS
Supported software: VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
RJ-45 10/100 Mbps network interface with PoE support (802.3af/at)
Reset button included
Power supply: 12 VDC ±5%, max. 10.8 W or PoE, max. 12 W
Operating temperature: -30 °C to +60 °C (-30 °C to +60 °C)
Storage temperature: -40 °C to +60 °C (-40 °F to +60 °C)
Relative humidity: ≤95 % non-condensing
Metal housing
IP67 protection
IK10 protection
Dimensions: 112.3 × 92.5 mm
Net weight: 0.71 kg
Gross weight: 0.96 kg
3AXIS: 0°~360° (PAN), 0°~77° (TILT), 0°~360° (Rotation)
Certifications: CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF

REFERENTIE / MODEL	TPLINK-158 / InSight S445ZI
Resolutie	4MP
Audio	1 ingang / 1 uitgang \|\| Microfoon \|\| Speaker \|\| Two-way
IR afstand	41-80m
IP waarde	IP67
Lens	Gemotoriseerd 2.7~13.5 mm
Speciale bescherming	Antivandaal (IK10)
Sensor	1/2.9" CMOS
StarLight	StarLight
WDR (tegenlight)	WDR (120dB)
Codec	H.264 \|\| H.264+ \|\| H.265 \|\| H.265+
PoE	PoE \|\| PoE+
SD Slot	Ja
Kleur	Wit
Installatieomgeving	Buiten
Materiaal	Metaal
Alarm kanalen	1 ingang / 1 uitgang
Connectiviteit	IP
Intelligente functies	Perimeter bescherming \|\| Verlaten voorwerpen
Compatibiliteit	Onvif
Submerk	VIGI by TP-Link
