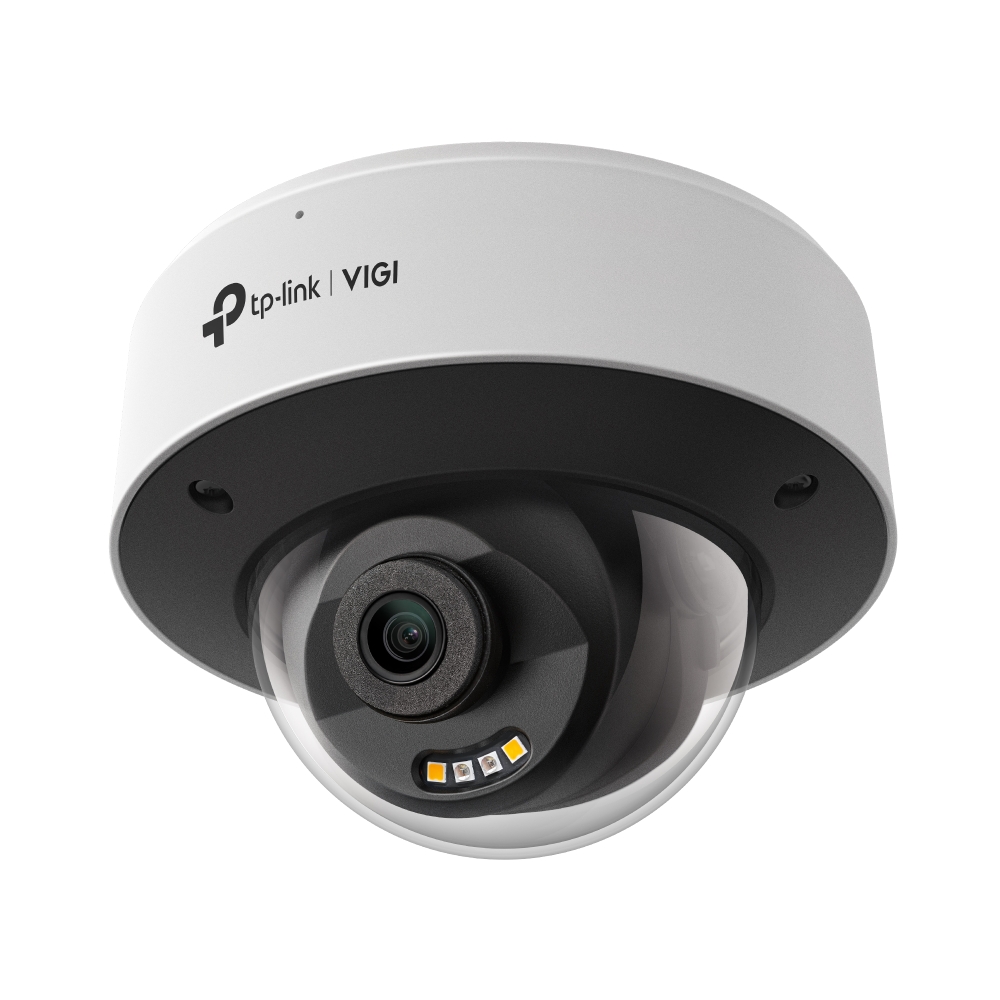

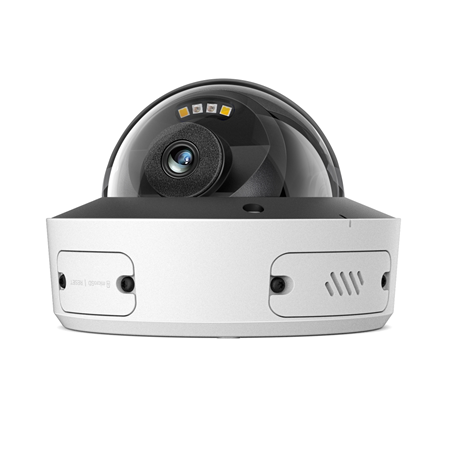

4MP IP dome with active deterrence and advanced analytics

Name: TPLINK-171
SKU: InSight S245(4mm)
Availability: InStock
Rating: 5 (72 reviews)

TPLINK-171

InSight S245(4mm)

Hoofd functies

Minidome IP TP-Link VIGI 4MP@30ips
Fixed lens 4 mm
0.005 lux, IR 30 m
WDR 120 dB, BLC, HLC, 3D DNR
Active deterrence with white light and audible warning
Detection of people and vehicles
Built-in microphone and speaker
MicroSD slot
IP67 and IK10 protection
PoE

Specificaties

1/2.7" progressive CMOS sensor with maximum resolution 2688 × 1520
Fixed lens 4 mm with F1.6 aperture and M12 mount
Angle of view: 88° (H), 46° (V), 105.4° (D)
Supported resolutions: 2688 × 1520, 2560 × 1440, 2304 × 1296, 2048 × 1280, 1080P, 720P, WVGA, D1, VGA, nHD, CIF, QVGA
Stream 1: 2688 × 1520, 2560 × 1440, 2304 × 1296, 2048 × 1280, 1080P, 720P (1~25/30 ips)
Stream 2: WVGA, D1, VGA, nHD, CIF, QVGA (1~25/30 ips).
Video compression: H.265+, H.265, H.264+, H.264
0.005 lux (color), 0 lux with IR or white light
2 IR LEDs (850 nm) and 2 white light LEDs with up to 30 m range
Image functions: 120 dB WDR, BLC, HLC, 3D DNR, ROI, privacy mask (up to 4 zones)
Intelligent functions:
- Person and vehicle classification
- Intrusion detection
- Line crossing detection
- Region entry/exit detection
- Abandoned/removed object detection
- Loitering detection
- Anomalous sound detection
- Scene change detection
- Person detection
- Vehicle detection
- Motion detection
- Video manipulation
- Unauthorized login
Active deterrence with flashing white light and audible warning
Built-in microphone and speaker for two-way audio
MicroSD card storage up to 512 GB (card not included)
ONVIF compatible (Profile S, T, G)
Network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, FTP/SFTP, RTP, IPv4, IPv6, ARP, SSL/TLS
Supported software: VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
RJ-45 10/100 Mbps network interface with PoE support (802.3af/at)
Reset button included
Power supply: 12 VDC ±5%, max. 10.54 W or PoE (max. 12.52 W)
Operating temperature: -30 °C to +60 °C (-30 °C to +60 °C)
Storage temperature: -40 °C to +60 °C (-40 °F to +60 °C)
Relative humidity: ≤95 % non-condensing
Metal housing
IP67 protection
IK10 protection
Dimensions: 122 × 122 × 89 mm
Net weight: 0.62 kg
3AXIS: 0°~346° (PAN), 0°~75° (TILT), 0°~355° (Rotation)
Certifications: CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC.

REFERENTIE / MODEL	TPLINK-171 / InSight S245(4mm)
Resolutie	4MP
Audio	Microfoon \|\| Speaker \|\| Two-way
IR afstand	21-40m
IP waarde	IP67
Lens	4 mm
Speciale bescherming	Antivandaal (IK10)
Sensor	1/2.7" CMOS
StarLight	StarLight
WDR (tegenlight)	WDR (120dB)
Codec	H.264 \|\| H.264+ \|\| H.265 \|\| H.265+
PoE	PoE \|\| PoE+
SD Slot	Ja
Kleur	Wit
Installatieomgeving	Buiten
Materiaal	Metaal
Alarm kanalen	Geen
Connectiviteit	IP
Intelligente functies	Perimeter bescherming \|\| Verlaten voorwerpen
Compatibiliteit	Onvif
Submerk	VIGI by TP-Link
