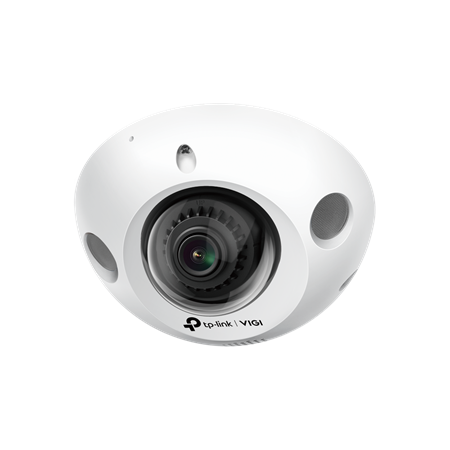

3MP IP dome with fixed lens TP-Link VIGI

Technical Features

• TP-Link VIGI C230 series IP Dome
• 1/2.8" Progressive Scan CMOS Sensor
• Maximum resolution of 3MP (2304 × 1296)
• Minimum illumination: 0.1 lux (color), 0 lux with IR
• ICR (IR Cut Filter) day/night
• Integrated infrared illumination with range up to 30 m (100 ft)
• Fixed lens 2.8 mm
• Angle of view: H: 106.9°, V: 56.9°, D: 127.9°.

Video Stream

• Stream 1: 3MP@25 fps
• Stream 2: configurable lower resolutions
• Video compression: H.265+/H.265/H.264+/H.264

Features

• Digital WDR
• 3D DNR noise reduction
• Smart IR
• Configurable privacy masks

Intelligent functions

• On-camera classification of people and vehicles
• Intrusion and line crossing detection
• Region entry and exit detection

Audio

• Integrated two-way audio
• Integrated microphone
• Integrated speaker

Storage

• MicroSD card slot up to 256 GB (card not included)

Network

• Ethernet 10/100 Mbps RJ45 Ethernet network interface
• Network protocols: TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS
• ONVIF support

Power supply

• 12 V DC
• PoE IEEE 802.3af

Environmental

• Vandal resistant IK08
• Operating temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Relative humidity: up to 95% non-condensing

Physical characteristics

• Material: plastic
• Dimensions: 114 × 114 × 58 mm
• Net weight: 0.23 kg
• Gross weight: 0.41 kg

Contents

• 3MP mini dome IP camera with 2.8mm Fixed lens TPLINK-283 (VIGI C230I Mini(2.8mm))

Certifications

• CE
• FCC
• UKCA
